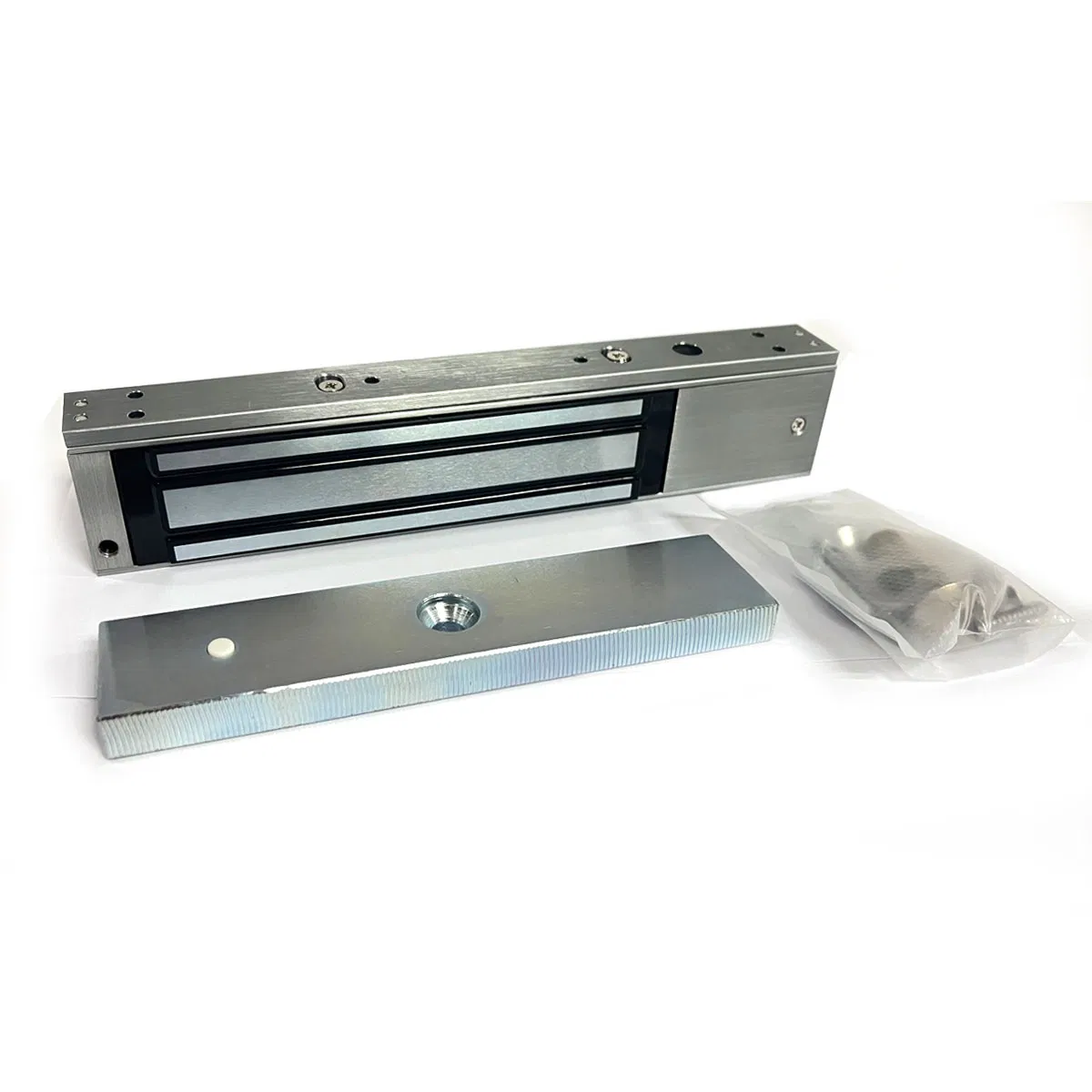

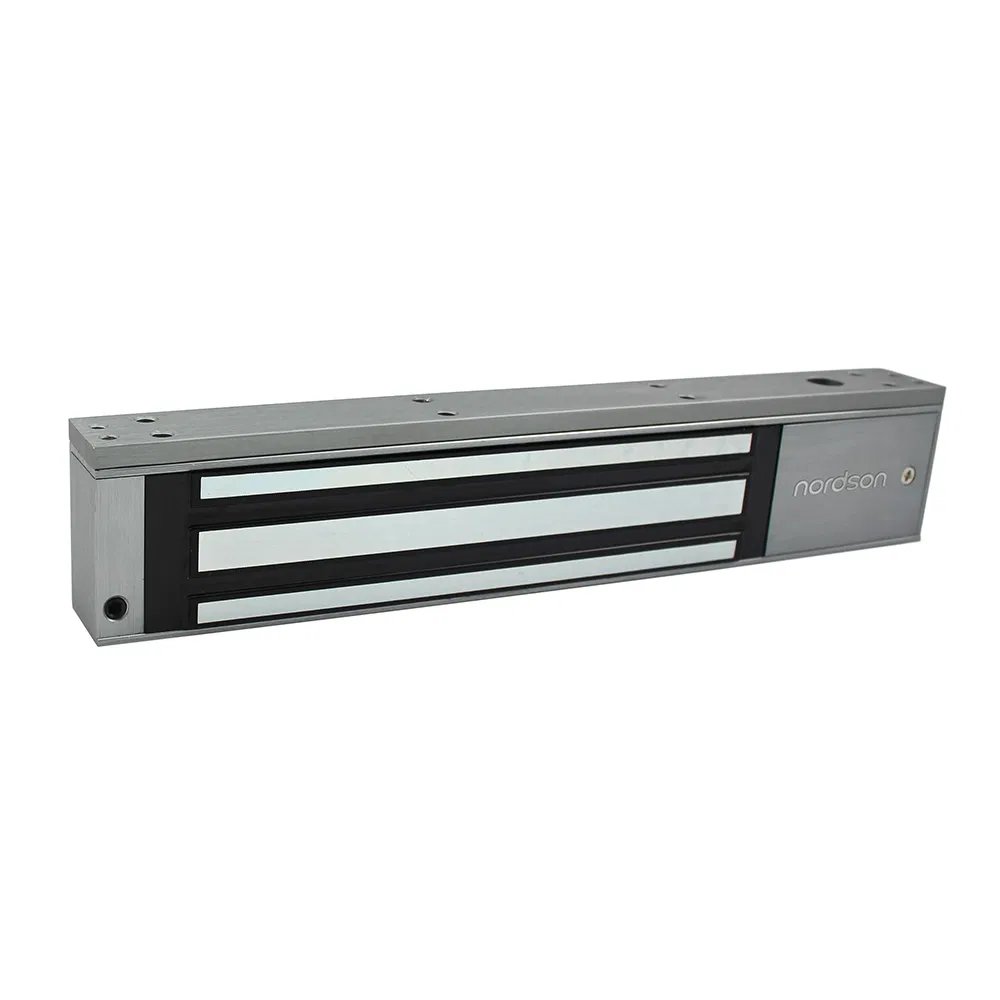

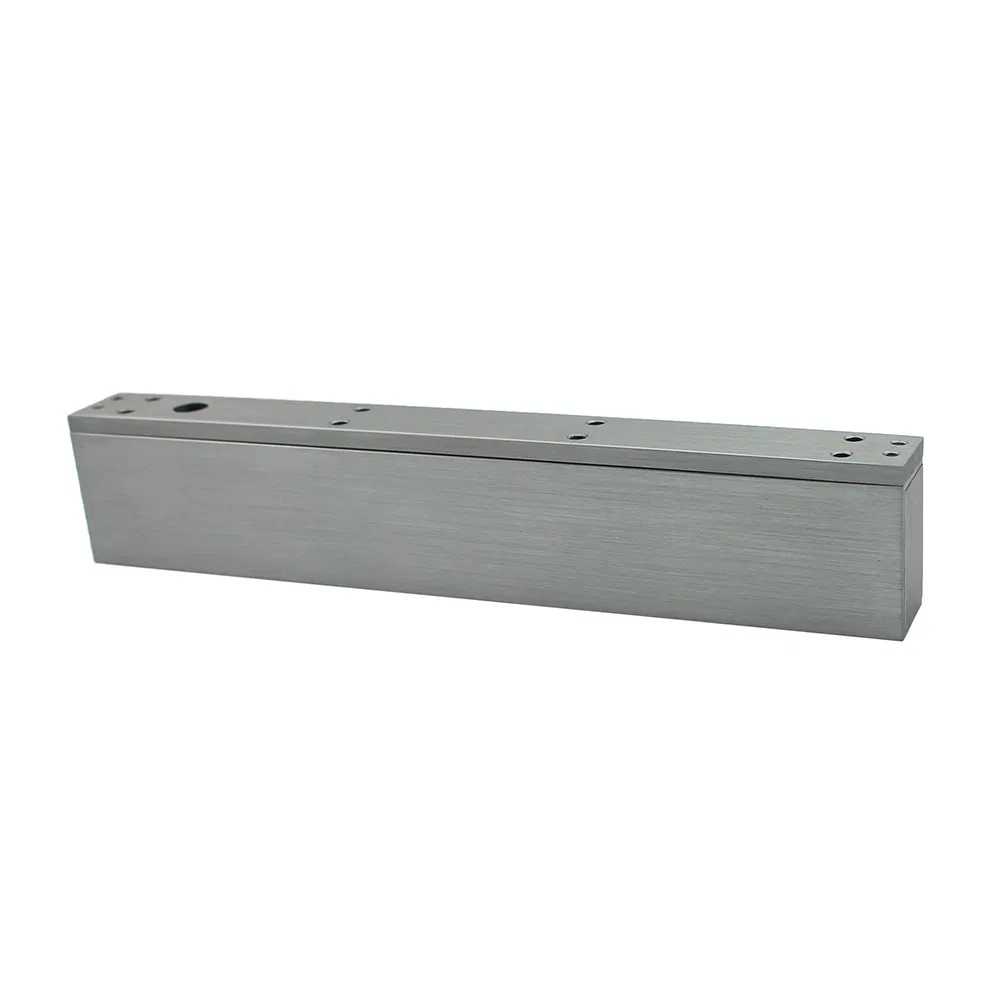

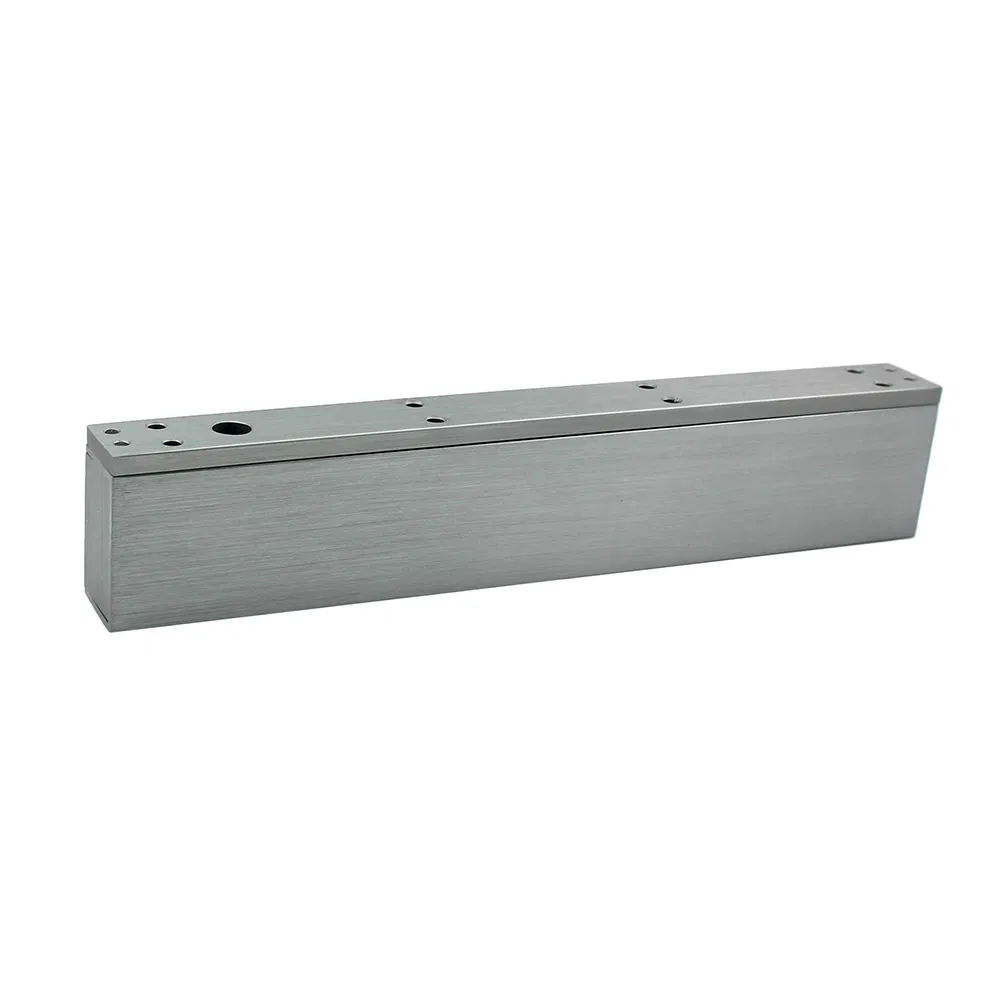

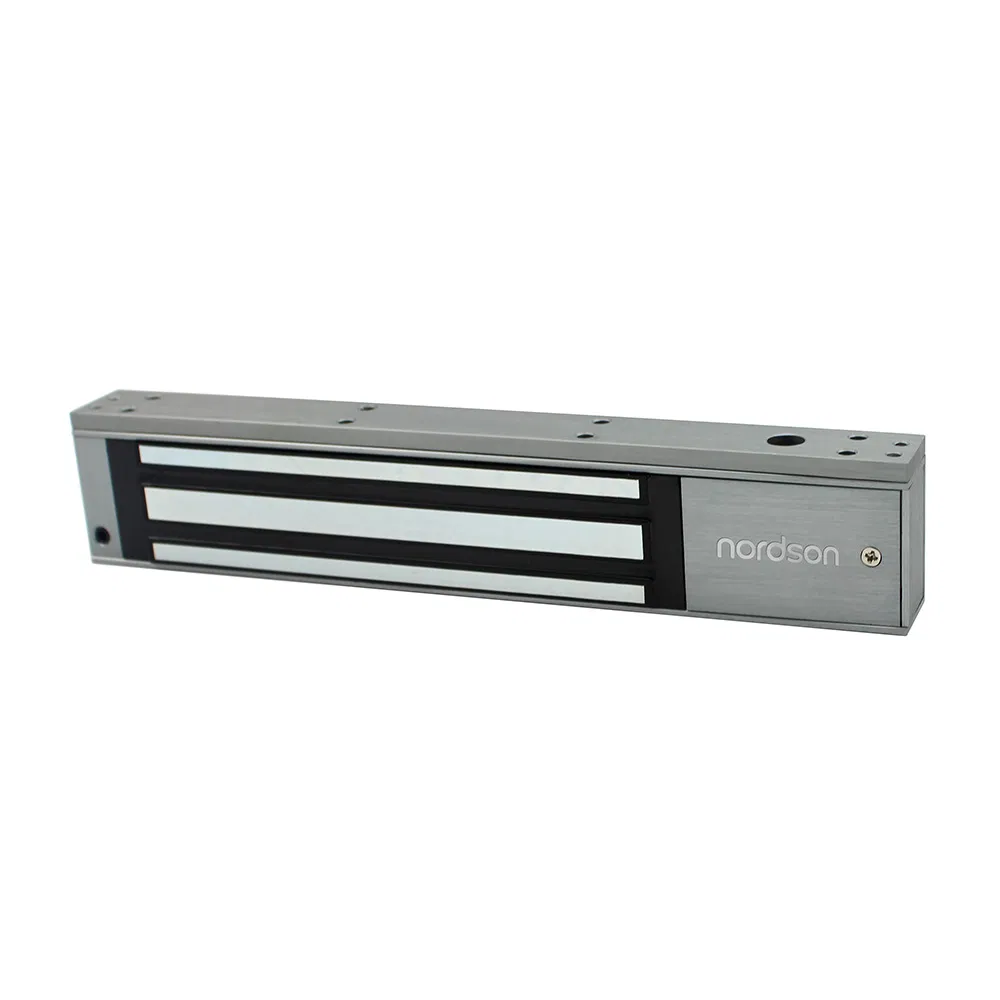

NE-280S(Buzzer) is a single door magnetic lock equipped with a Buzzer/LED and door position detection output. It is specially designed for normal glass doors, wooden doors, metal doors, and fire doors. The hoisting design saves significant time and power during installation. Special Anti-residual magnetic design makes automatic access control safer and more convenient.

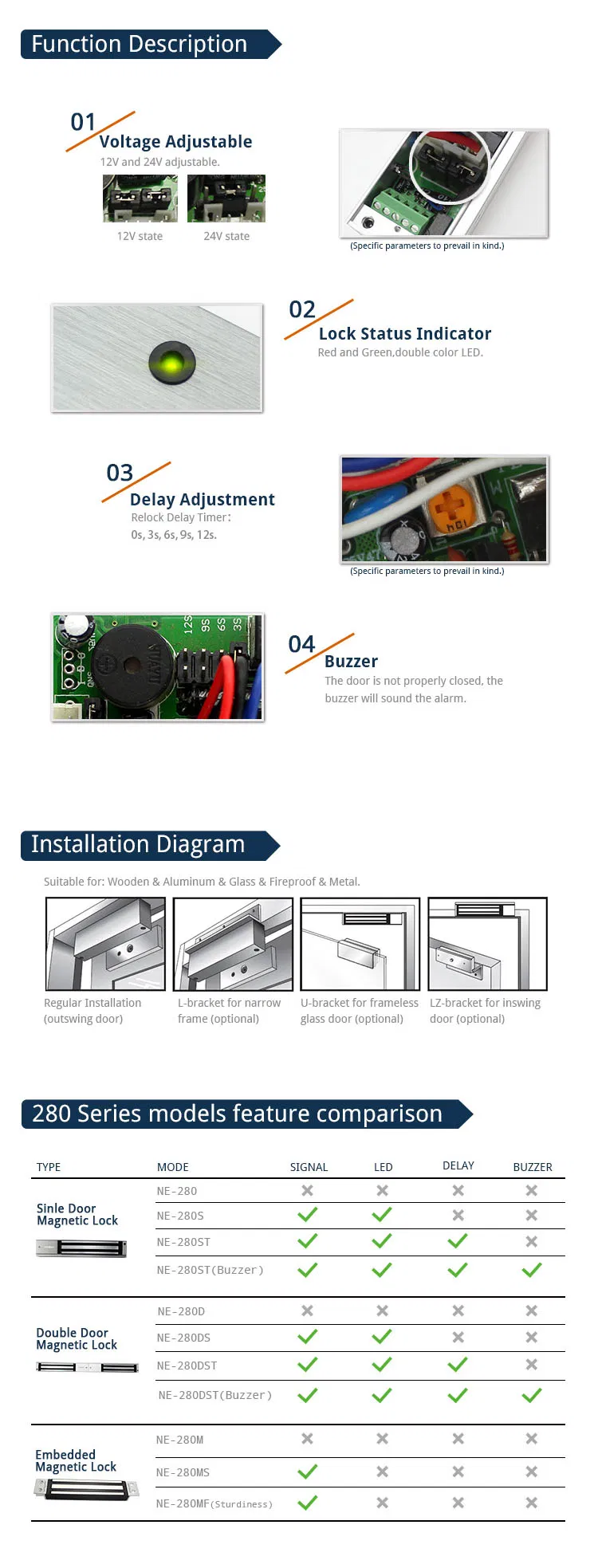

| Buzzer | When lock abnormal, provide buzzer alarm |
| Lock Status Indicator | Red and Green, double color LED |
| Current consumption | 12V/500mA; 24V/250mA |
| Optional Functions | Relock Delay Timer, Buzzer |
| Ambient temperature | -10~+55ºC (14-131F) |
| Suitable for | Wooden, Aluminum, Glass, Fireproof & Metal doors |

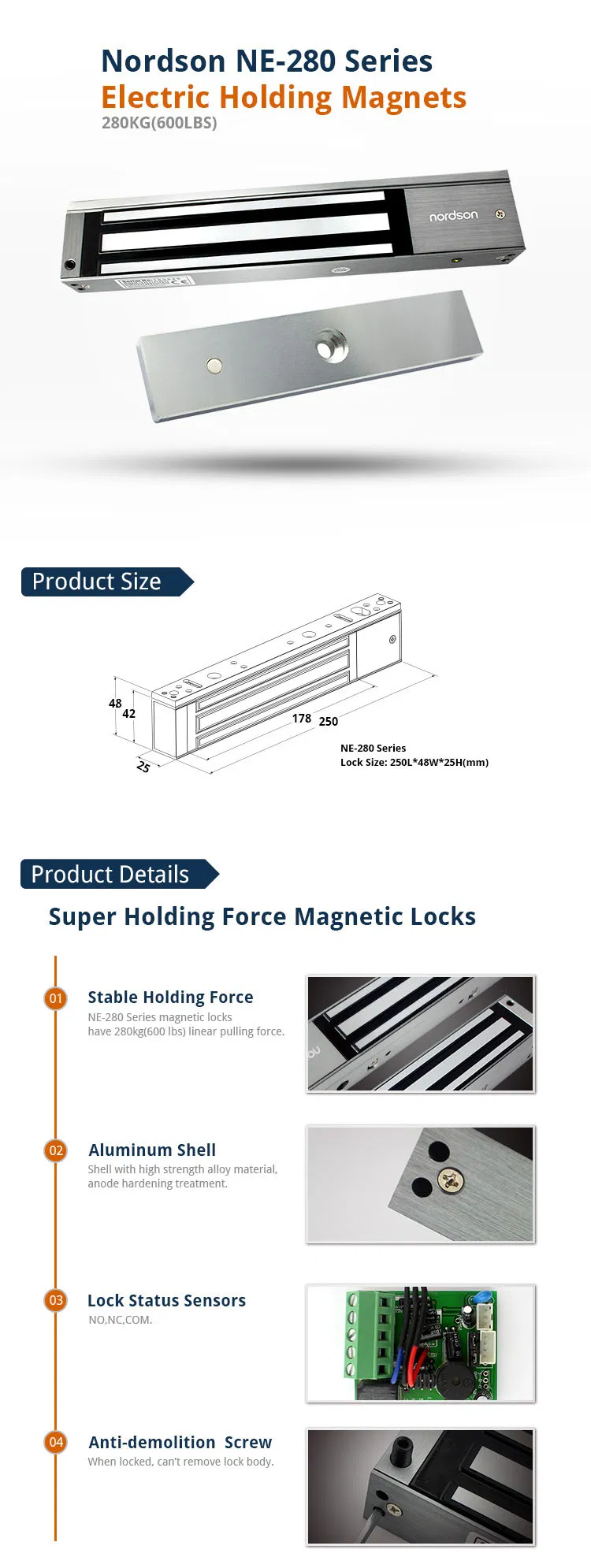

| Magnets Dimensions | 250L x 48W x 25H (mm) |
| Armature Plate Dimensions | 180L x 38W x 11H (mm) |
| Weight | 2.0kg |
| Compliance | CE & RoHS Certified |
