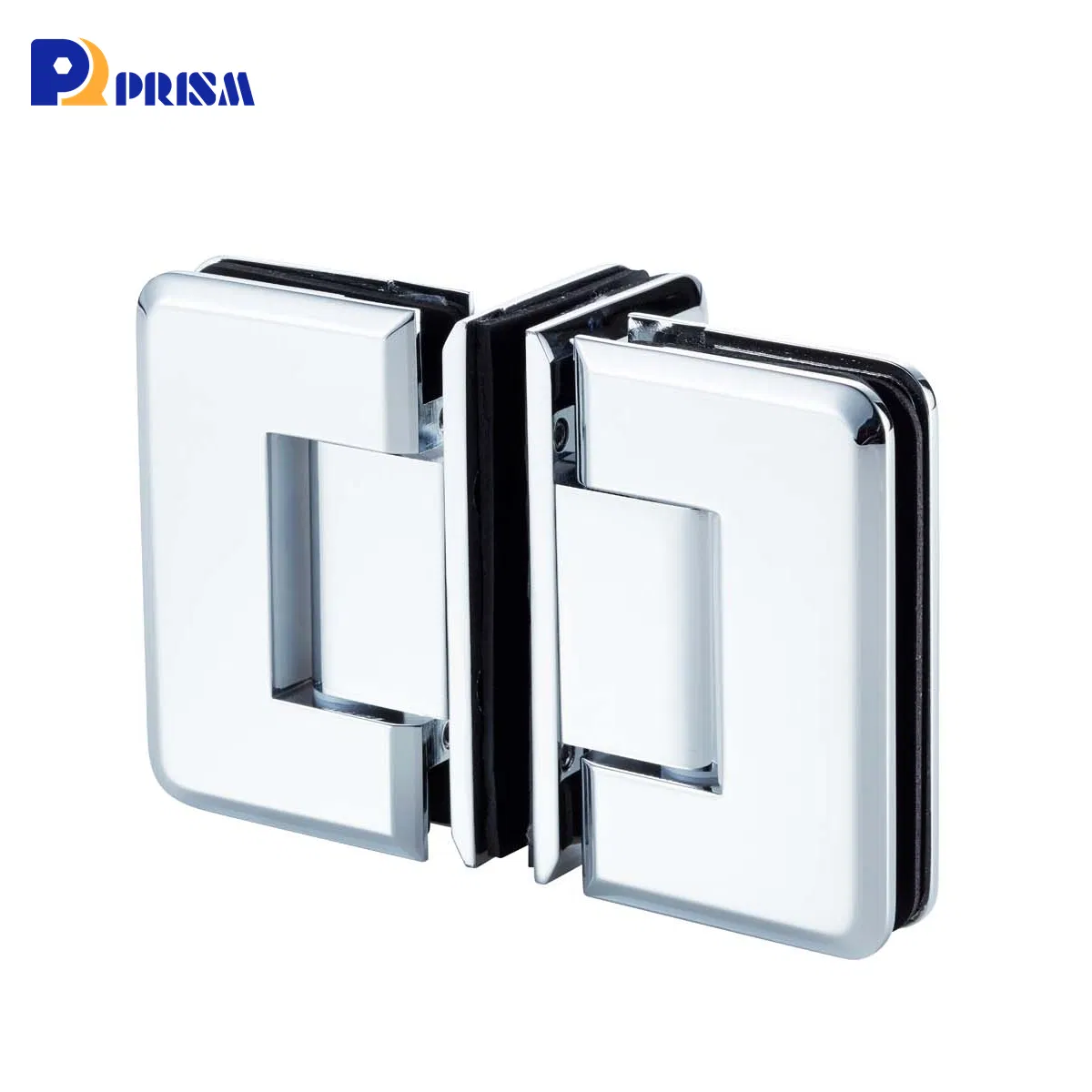

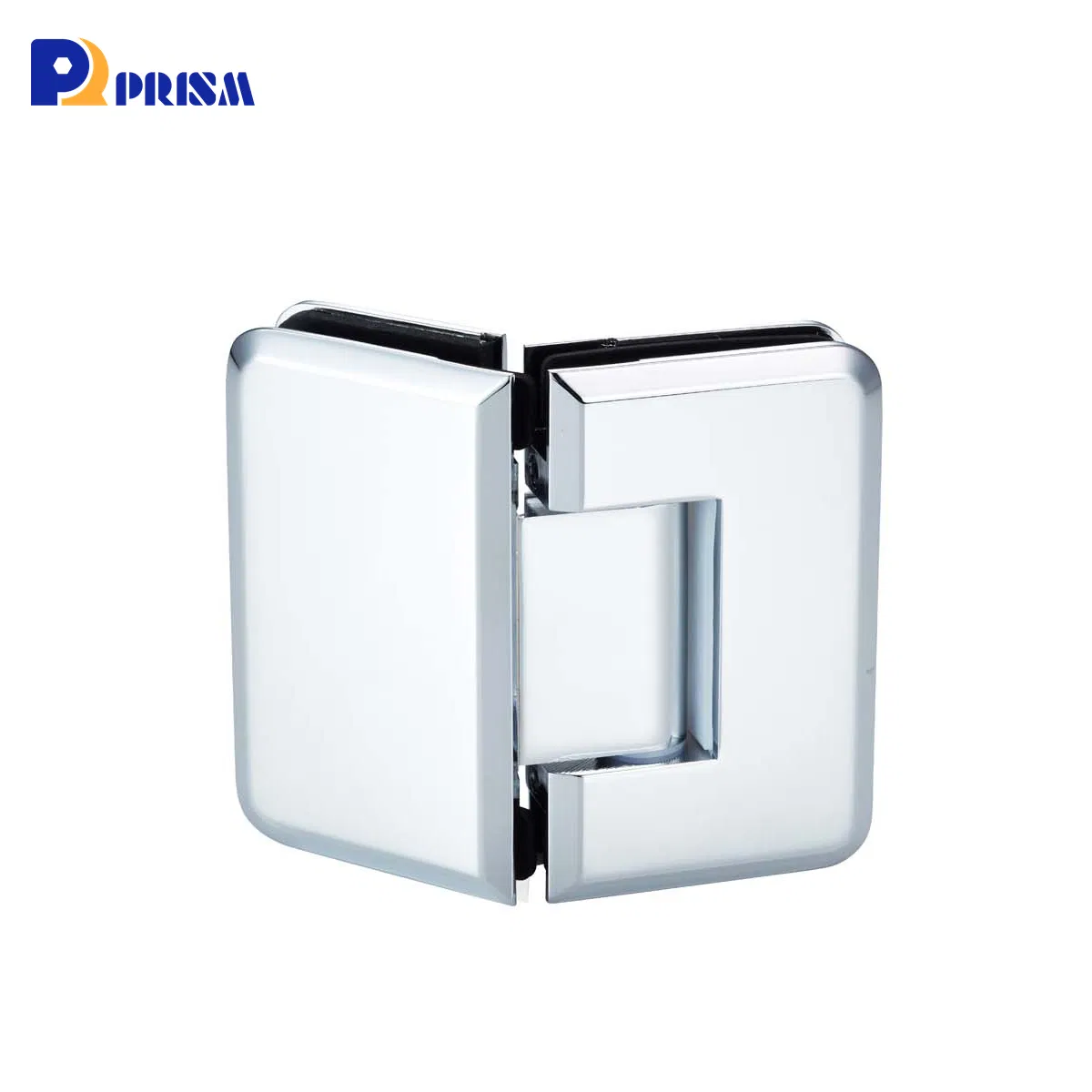

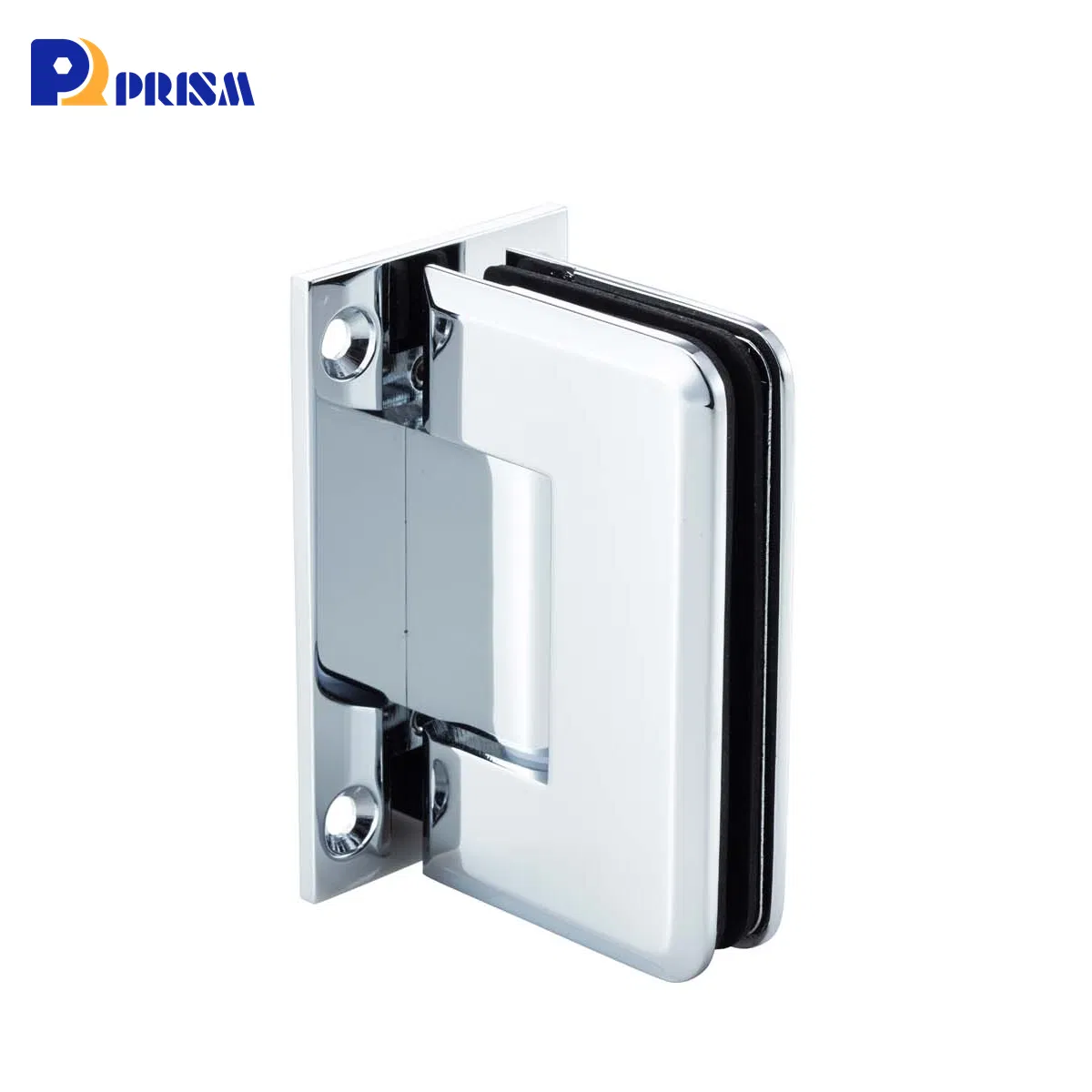

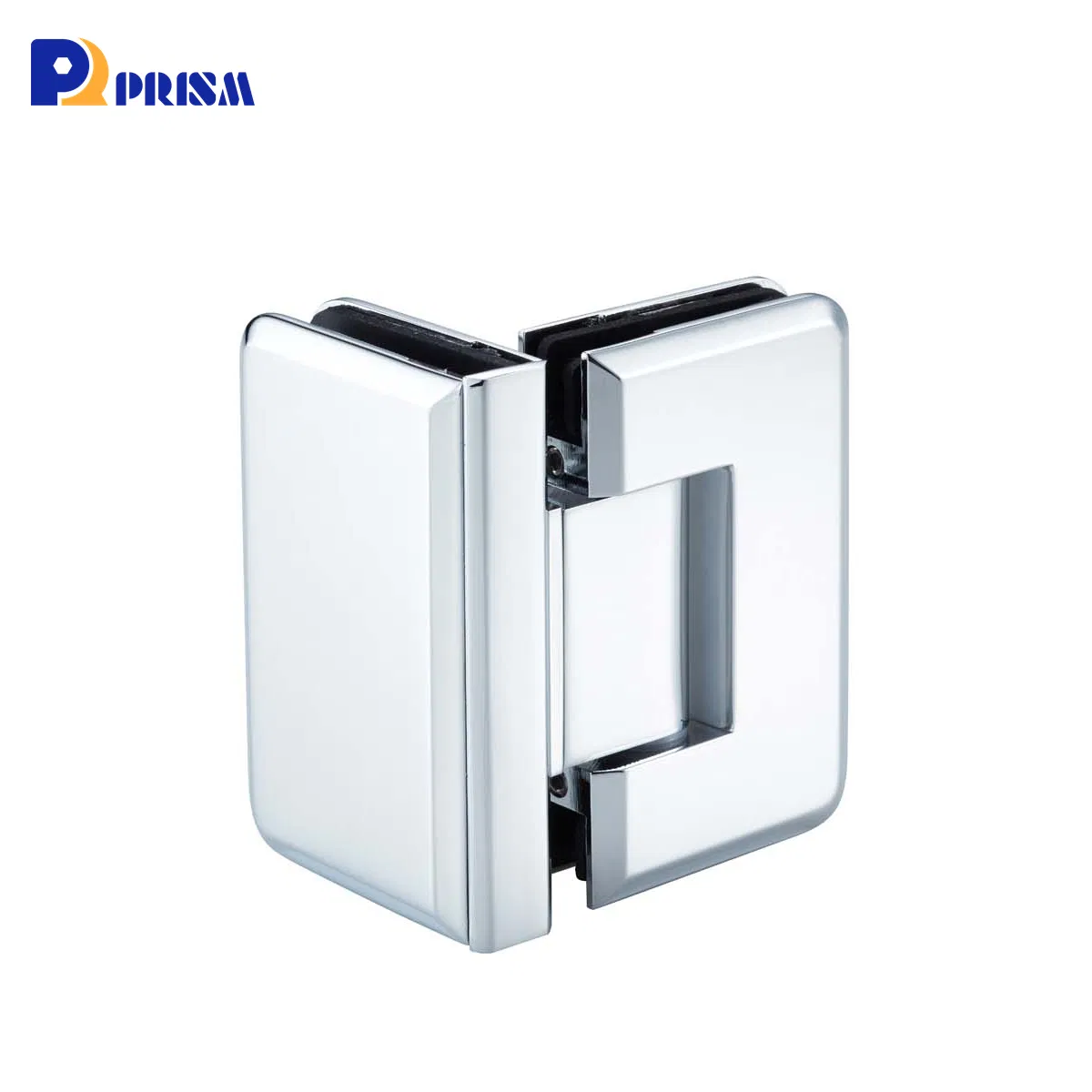

Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges
Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges
Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges
Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges
Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges
1 / 5
Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges
Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges
Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges
Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges
Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges

Heavy Duty Brass Chrome Plated Bathroom Glass Door Hinges 90° Wall Mounted -Beveled Edges

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
6215
Material
Solid Brass
Finish
Chrome Plated
Weight
0.65 Kg
Glass Thickness
6-12mm (Optimized for 8-12mm)
Opening Angle
90° Glass-to-Wall
Capacity
50,000 pieces/Month
Max Load
45kg (per 2 pcs)
Heavy Duty Brass Chrome Plated Hinge
Beveled Edges Detail

Product Features

  • Material Quality: Constructed from high-quality Solid Brass for superior durability and corrosion resistance.
  • Versatile Finishes: Available in Chrome, Nickel, Brass, and Black (supporting further customization).
  • Glass Compatibility: Perfect fit for 8-12mm thick flat tempered glass or laminated glass.
  • Self-Closing Mechanism: Features an integrated self-closing function when the door is within ±15° of the closed position.

Special Functionality

This series of hinge is equipped with a self-closing function. When the hinges are at a ±15° angle away from the closing position, they will automatically close, ensuring the door remains securely shut without manual intervention.

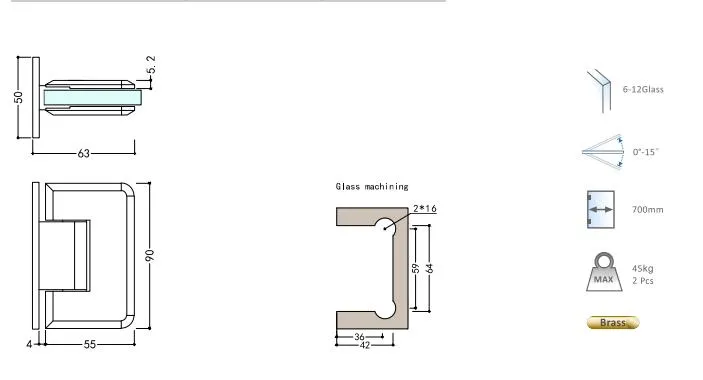

Hinge Dimension
Mechanical View
Installation Blueprint

Important Installation & Care

  • Always use tempered safety glass for all installations.
  • Avoid using power tools during installation to prevent damage to the hinges and decorative finish.
  • Ensure the product is mounted into suitable, load-bearing material.
  • Never exceed the maximum weight or size limits recommended.
  • Maintenance: Clean regularly with a soft cloth and non-abrasive soap or ammonia-based cleaners.
Product Application Detailed Component View
Technical Drawing 1
Technical Drawing 2
Packing Info Final Finish Display

Frequently Asked Questions

What material are these hinges made of?
The hinges are manufactured from high-quality Solid Brass, ensuring long-term durability and a premium feel.
How does the self-closing feature work?
The hinges are designed to automatically pull the door shut when it reaches a ±15° angle from the closed position.
What is the maximum glass thickness supported?
These hinges are compatible with glass thicknesses ranging from 6mm to 12mm, though 8-12mm tempered glass is highly recommended.
What is the weight capacity for a pair of hinges?
A set of two hinges can safely support a maximum weight of 45kg.
Can I request a custom finish?
Yes, while standard finishes include Chrome, Nickel, Brass, and Black, we support further customization to meet your specific design needs.
How should I clean the hinges to maintain the finish?
We recommend using a soft cloth with non-abrasive soap or ammonia. Avoid harsh chemicals that might strip the plating.
