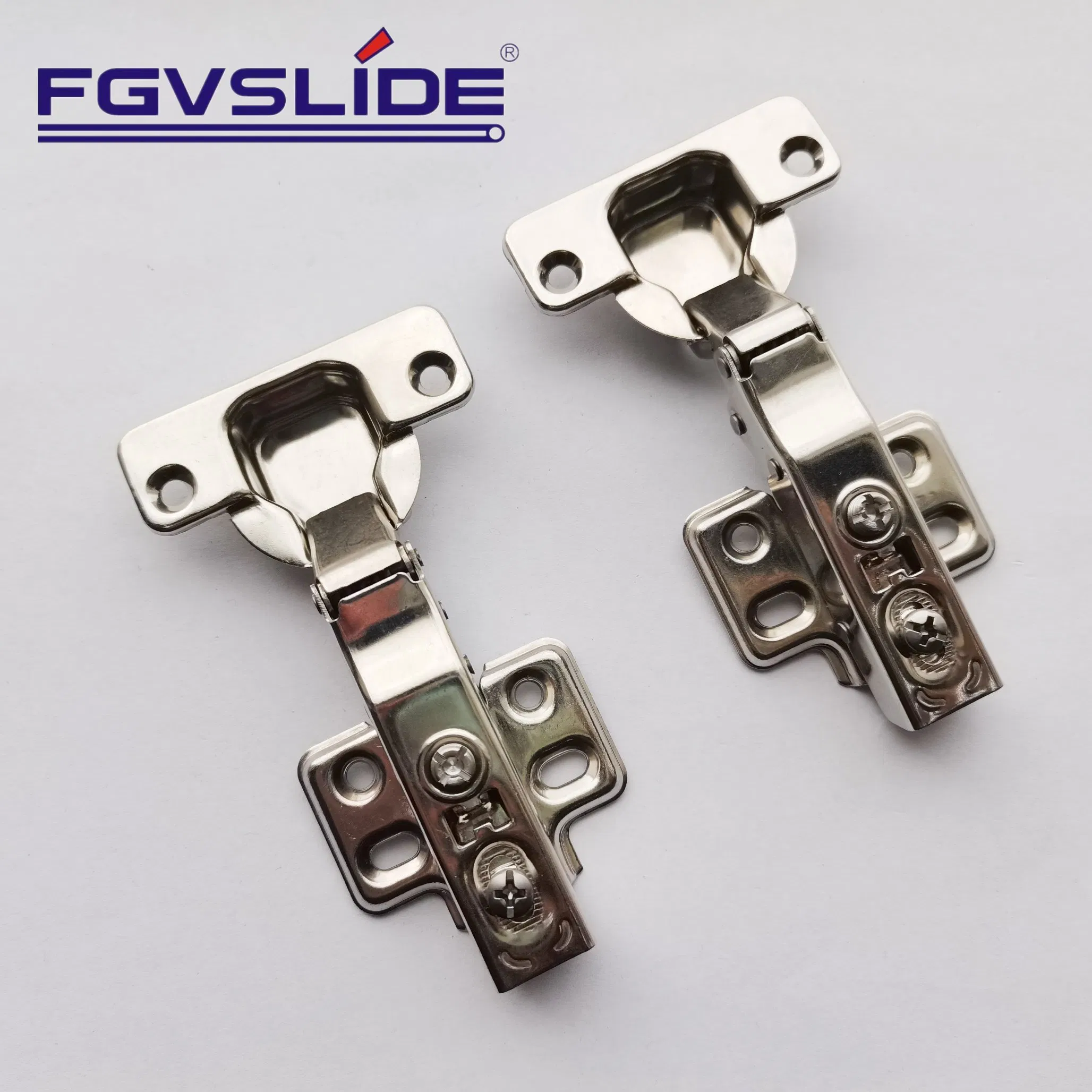

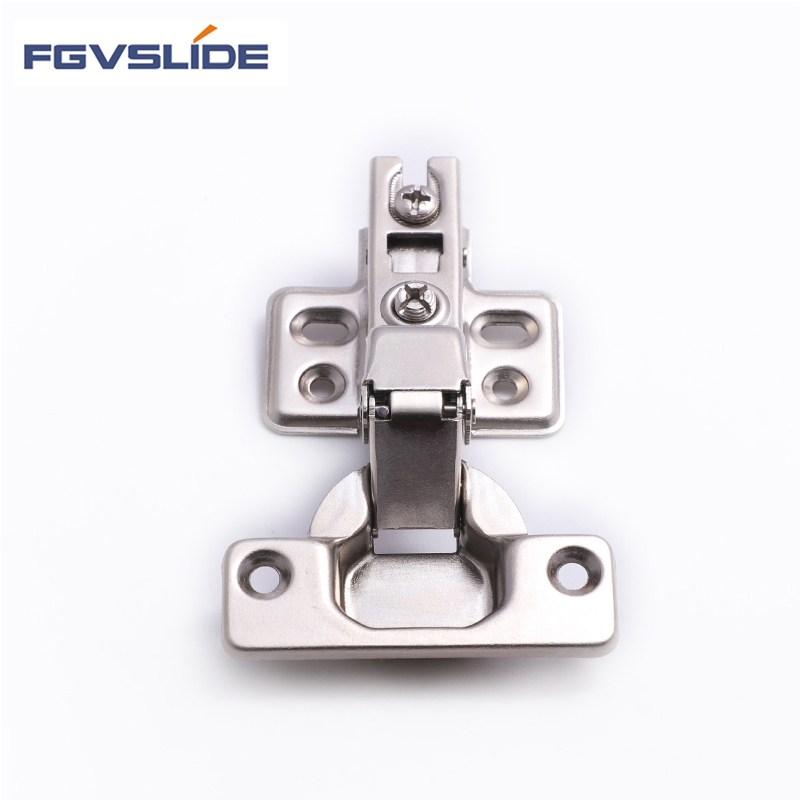

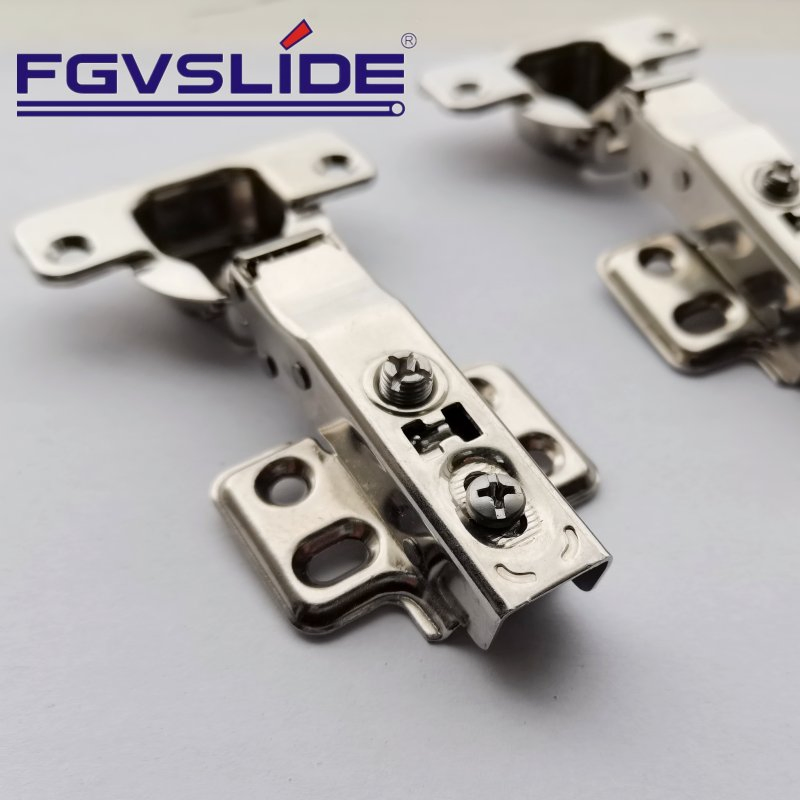

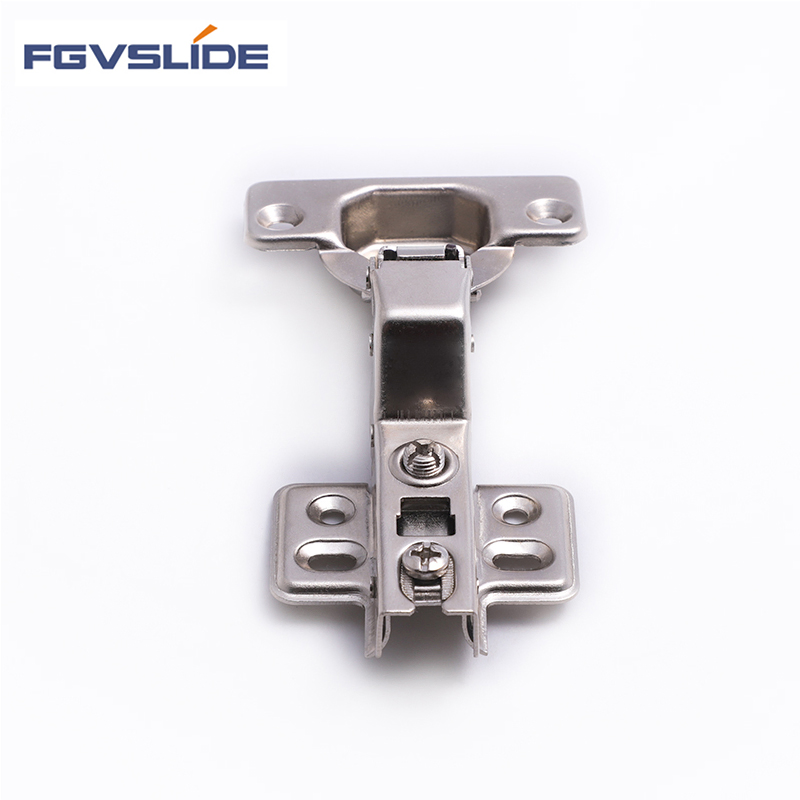

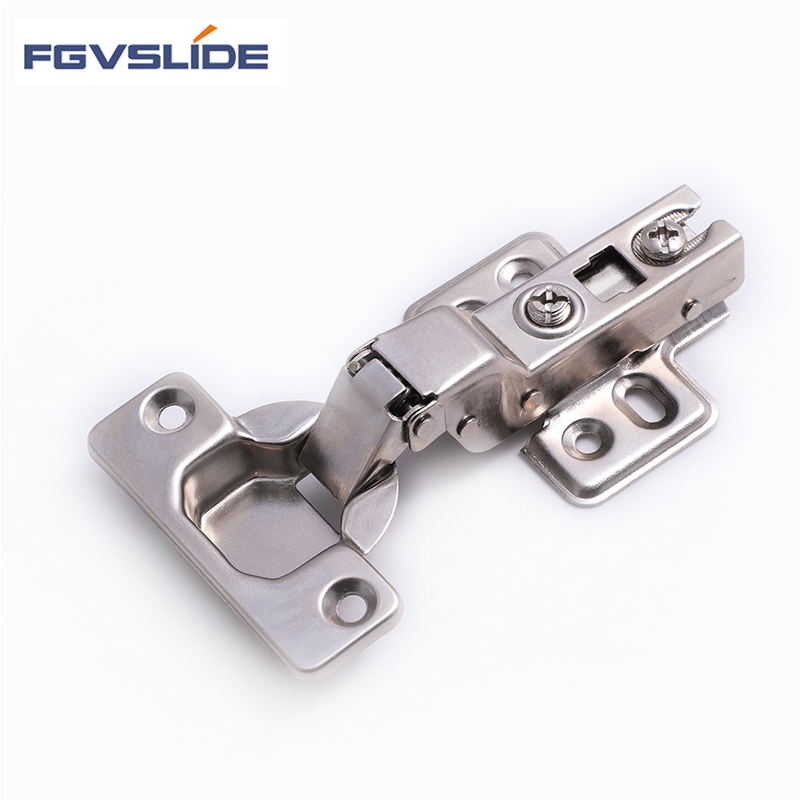

Cabinet Hardware Accessories Hydraulic Soft Close Slide on Hinge for Furniture

Basic Specifications

Model NO.

DY03H

Thickness

1.0mm

Angle

95-100°

Hole

With Hole

Disassembly

Undisassembly

Fixed

Color

Silver

Customized

Condition

New

Cycling Test

50000 times

Surface

Nickel Plated

Overlay

Full Overlay, Half Overylay, Insert

Opening Angle

110 Degree

Cup Diameter

35mm

Cup Drilling Depth

11.3mm

Surface Treatment

48hours Salt Spray Test

Transport Package

Bulk Package

Production Capacity

3,000,000 PCS/Week

Packaging & Delivery

Package Size

57.00cm * 40.00cm * 20.00cm

Gross Weight

20.000kg

Product Description

Hot Sale Cabinet Hardware Accessories Hydraulic Soft Close Slide on Hinge for Furniture Concealed Fittings Cabinet Door

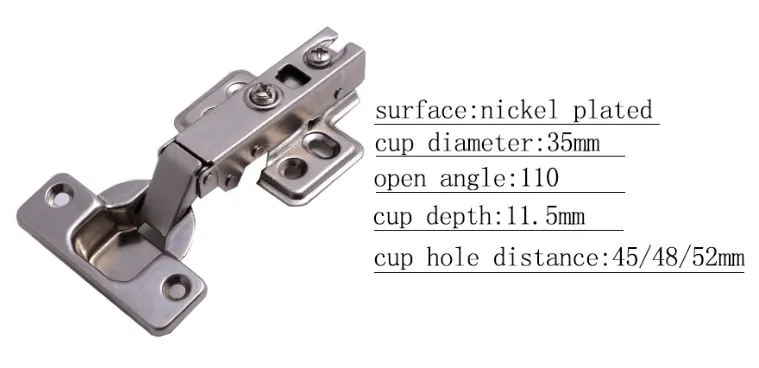

MATERIAL	cold rolled steel	FINISH	Nickel-plated
CUP DIAMETER	35mm	CUP HOLE DISTANCE	45/48/52mm
COLOR	clear	FUNCTION	soft closing

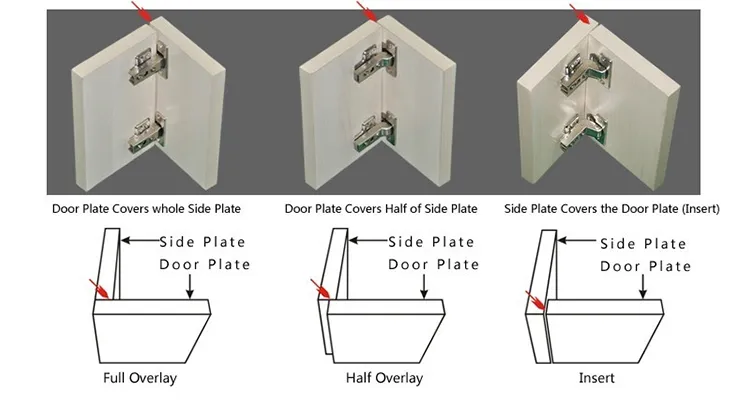

HOLE PATTERN	2 holes or 4 holes	STYLE	full overlay/half overlay/inset

Testing	• SGS TEST Passed over 50,000 open-close cycles • Passed 48 hours salt spray test
Sample	Sample free and small order can be accepted

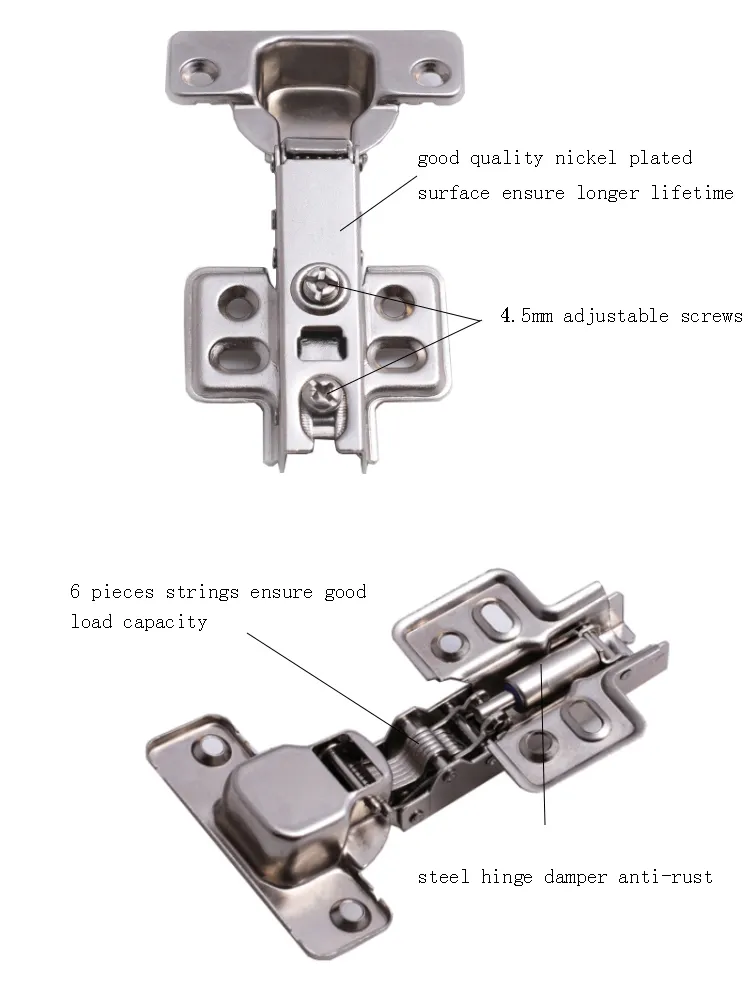

Features	• Strengthened adjustable screw for wider ranges and longer life. • Widening manganese steel spring to disperse force when closed. • Strengthened spring (2.5mm thickness vs common 1.2mm). • Advanced hydraulic system for longer life time and smaller volume.

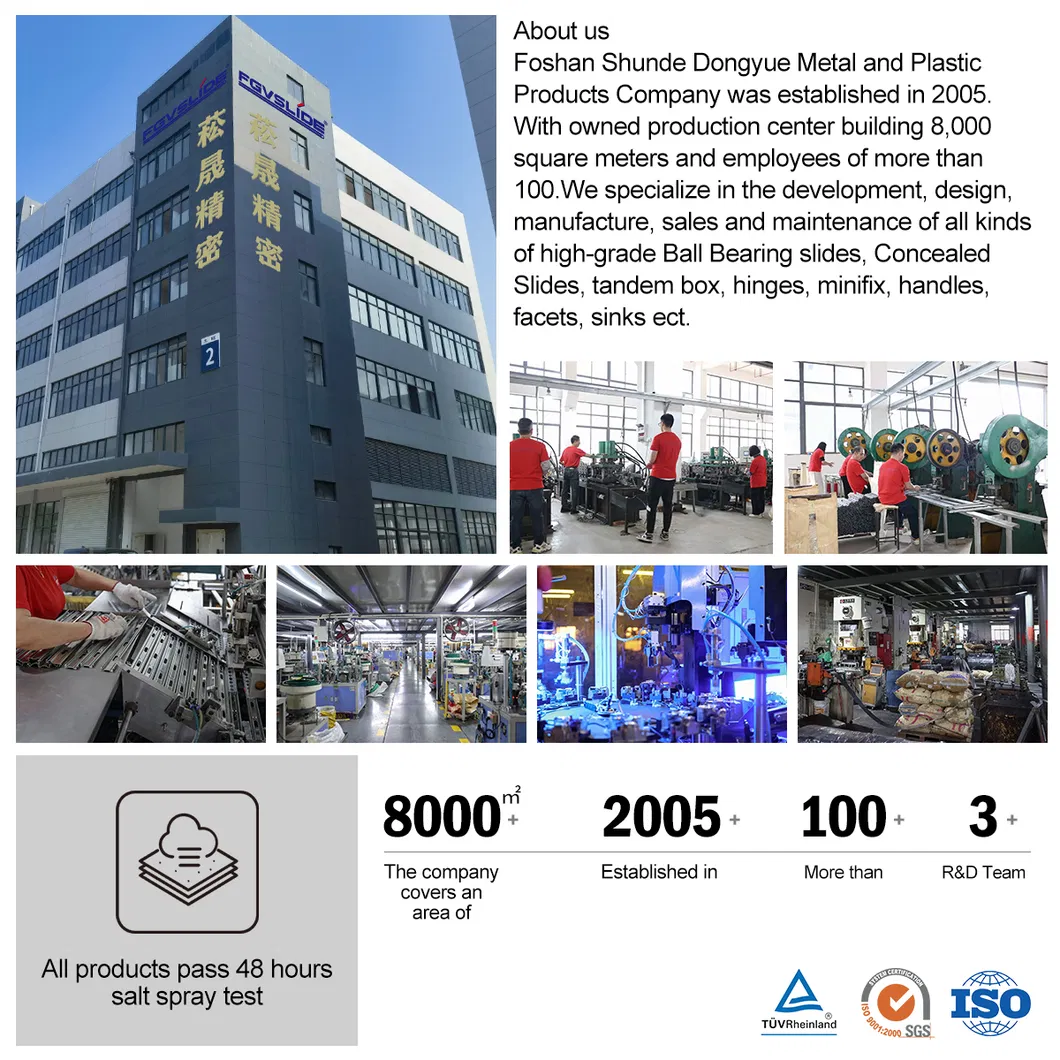

Manufacturing Facility

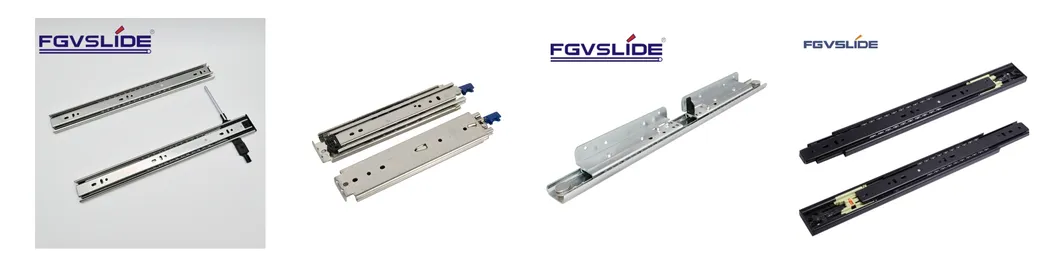

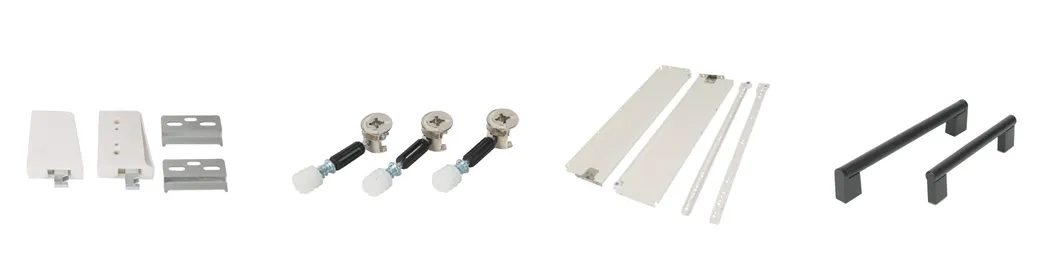

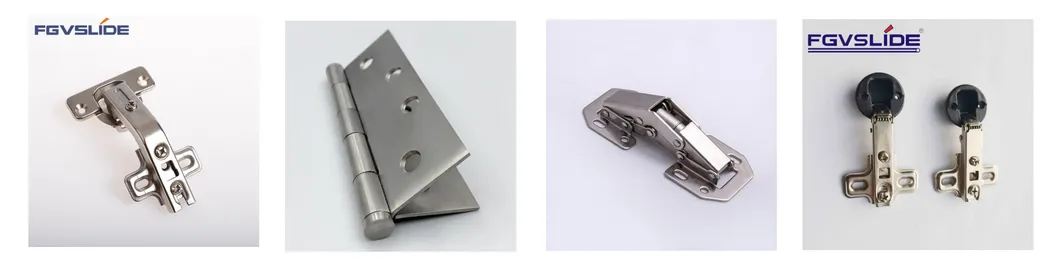

Related Products

Frequently Asked Questions

What's the MOQ for the first time purchasing?

If making a custom logo and brand package, the MOQ is a 20-foot container. If there is no need for a brand logo and package, the MOQ is 500 pairs per size.

How can we ensure quality before purchasing?

We can send samples for your inspection. Additionally, customers can appoint an agent to inspect the mass production quality at our facility to ensure standards are met.

What is the loading capacity for a 20ft container?

The maximum loading capacity is 27 tons, but exact capacity depends on the specific slide model chosen and regional regulations. Please consult our sales team for detailed information.

What is the standard delivery time?

Normally, the delivery time is 25-30 days after the order is confirmed by both parties.

What are the accepted payment terms?

We accept TT, Cash, or LC, with a 30% deposit required against the Bill of Lading (B/L).

What is the process if goods are received with quality issues?

All goods undergo strict inspection during assembly and packing; defects are very rare. If quality problems like finish issues occur, we will address them promptly based on the inspection report.
