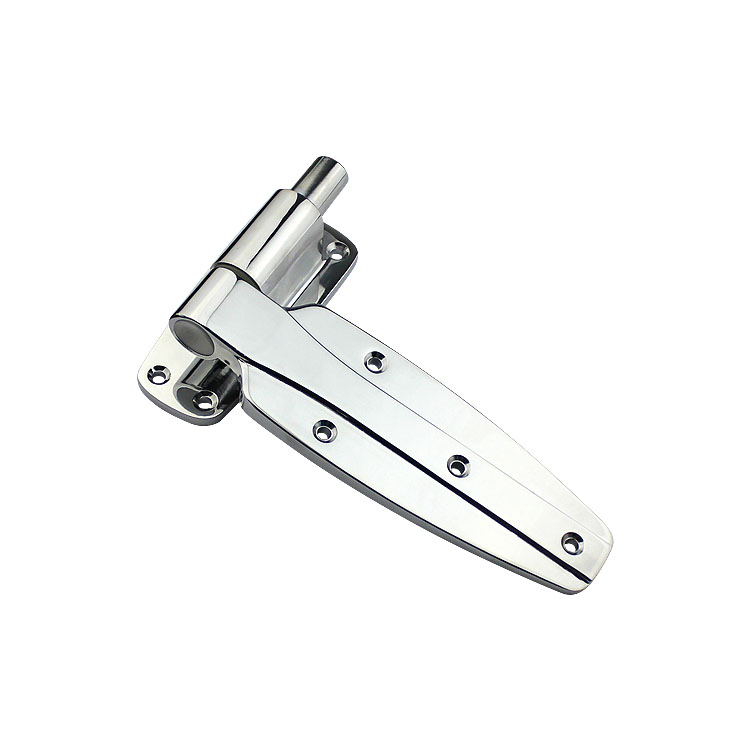

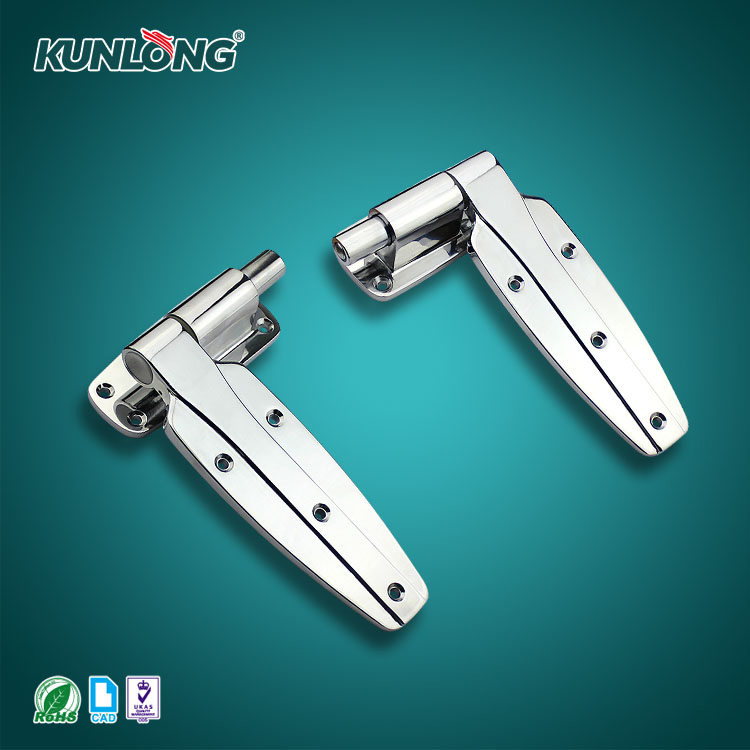

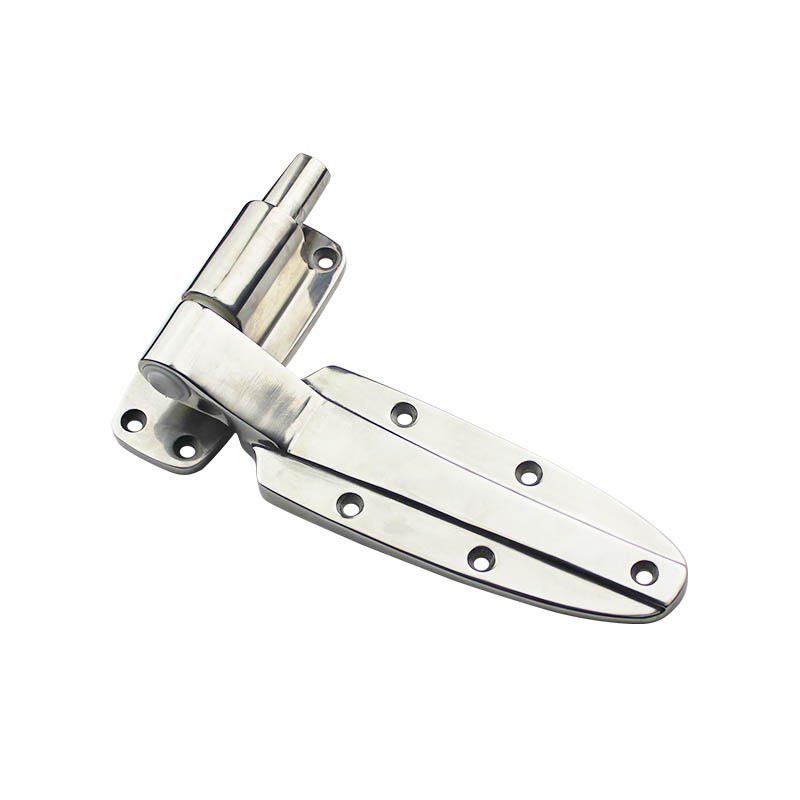

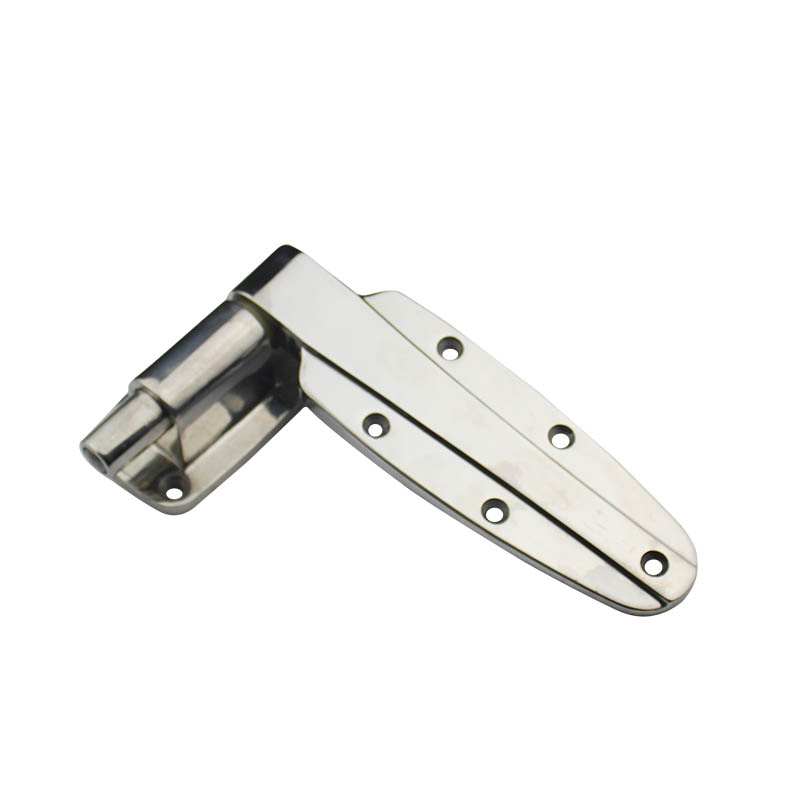

Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge
Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge
Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge
Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge
Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge
1 / 5
Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge
Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge
Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge
Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge
Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge

Sk2-1238 Cold Room Refrigerator Cabinet Lift off Spring Hinge

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
SK2-1238
Type
180° Hinge
Finish
Chrome Plated
Material
Stainless Steel
Application
Control Box, Power Box, Communication Cabinet
Usage
Industrial
Transport Package
Standard Carton
HS Code
7315119000
🛠️

Product Description

SK2-1238 Cold Room Refrigerator Cabinet Lift Off Spring Hinge

Product Name SK2-1238 Cold Room Refrigerator Cabinet Lift Off Spring Hinge
Material Stainless Steel (SUS304)
Finish Bright Chrome Plated / Black Painted
Type Butt Hinge
Applications Cabinet, Engineering vehicle, Special vehicle, Soundproof generator
Product N.W(g) 65g
Remarks Suitable for left and right side opening.
📸

Drawing and Pictures

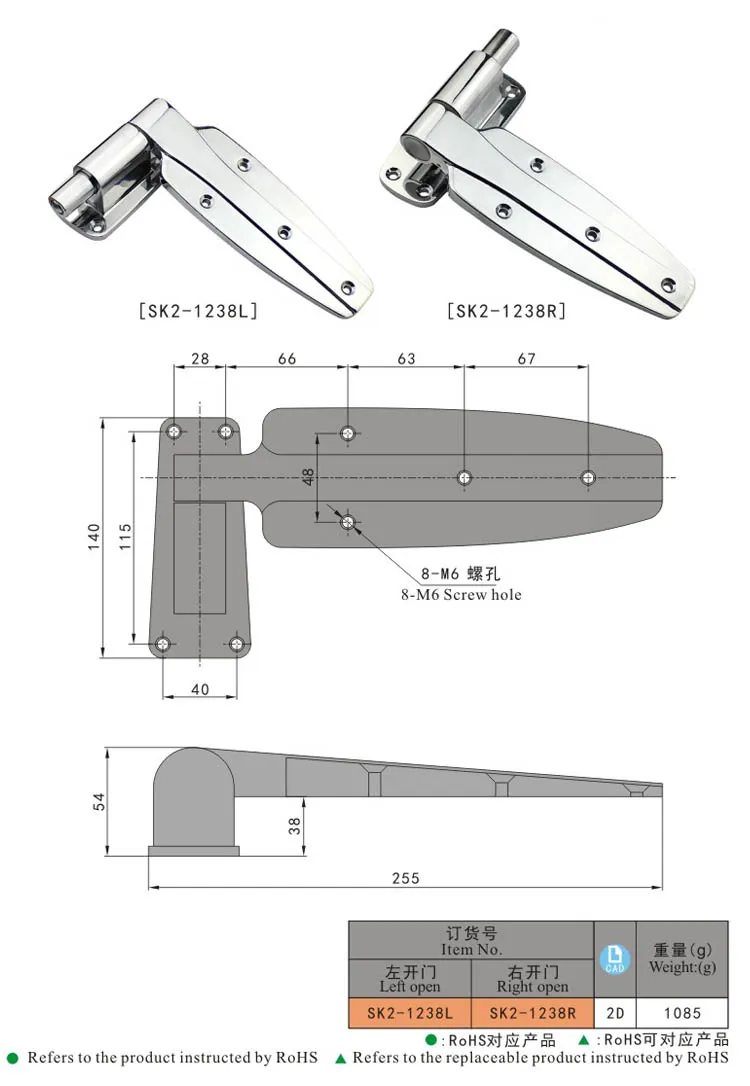

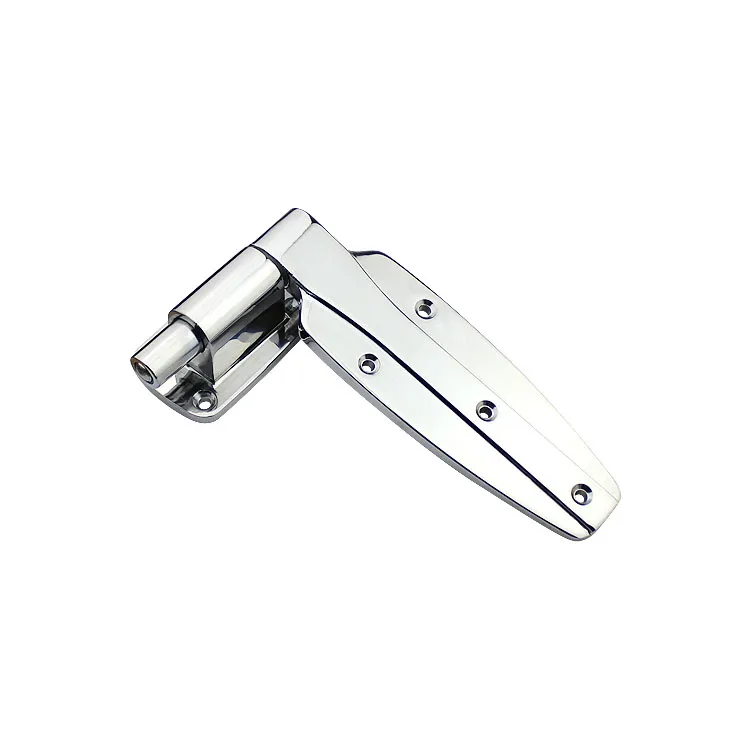

SK2-1238 Hinge View 1 SK2-1238 Hinge View 2 SK2-1238 Technical Drawing
📋

Technical Specifications

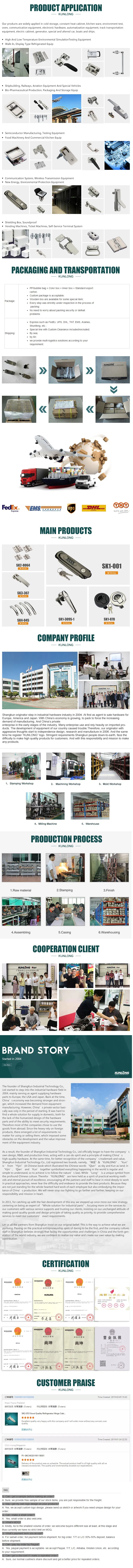

Detailed Specifications
❓

Frequently Asked Questions

What is the primary material used for the SK2-1238 hinge?
The hinge is manufactured using high-quality SUS304 Stainless Steel, ensuring excellent corrosion resistance and durability for industrial environments.
Can this hinge be used for both left and right-hand doors?
Yes, the SK2-1238 design is versatile and suitable for both left and right side opening configurations.
What surface finishes are available for this model?
This model is available in two professional finishes: Bright Chrome Plated and Black Painted.
What are the typical applications for this spring hinge?
It is widely used in cold room refrigerators, control boxes, power distribution cabinets, communication cabinets, and specialized engineering vehicles.
What is the weight and opening capacity of the hinge?
The product has a net weight of approximately 65g and is designed as a 180° lift-off butt hinge for industrial use.
Is the SK2-1238 suitable for soundproof equipment?
Yes, it is commonly applied to soundproof generators and other industrial enclosures that require secure and reliable hinging.
