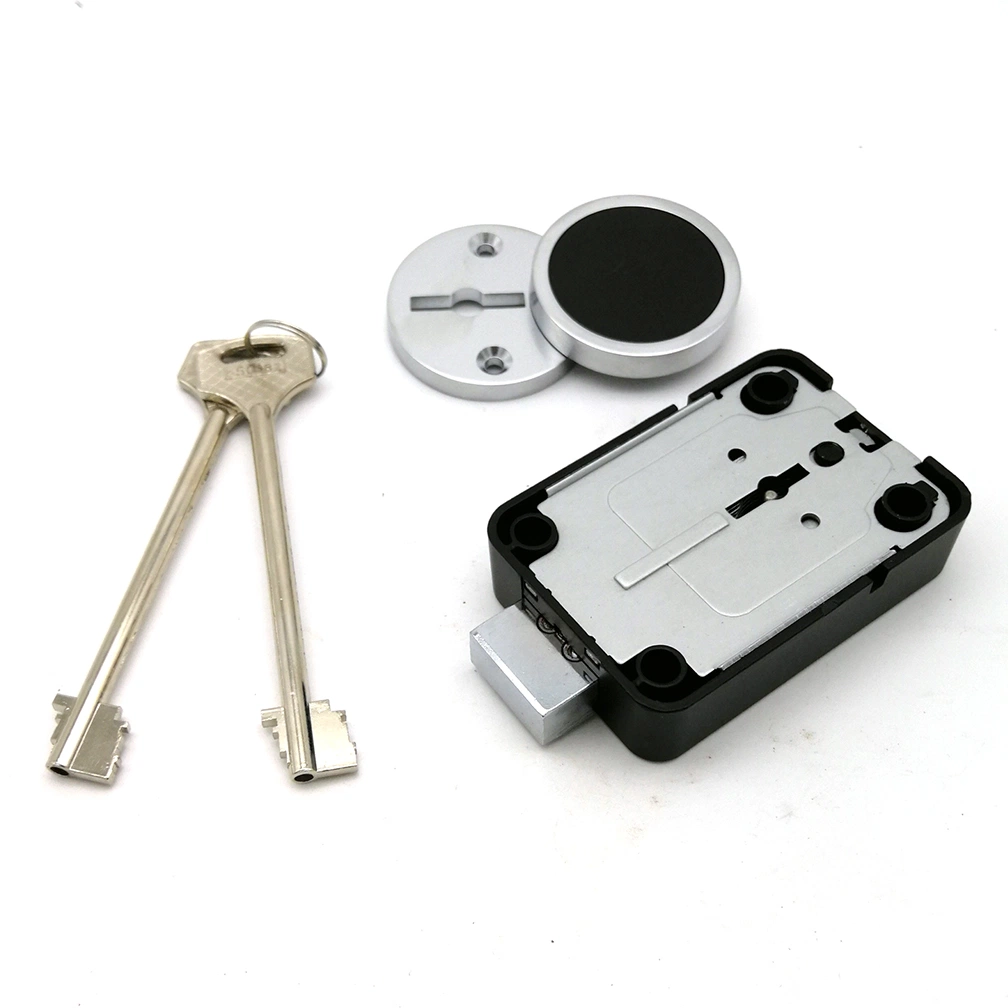

Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker
Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker
Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker
Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker
Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker
1 / 5
Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker
Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker
Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker
Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker
Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker

Yosec 8 Lever Mechanical Double Bit Key Safe Lock for Strongroom Vault Door and Safety Locker

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
M-480KS
Type
Lock Case
Cylinder Level
B
Cylinder Style
European Style
Structure
Single Bolt
Key Type
Double Row Anti Dialing Key
Key Functions
Master Key
Surface
Electroplating
Case Material
Galvanized Steel
Bolt Type
Square/Dead Bolt
Security Lever
8
Weight
350g
Backset
57mm
Bolt Stroke
12mm
Capacity
50000PCS Per Month
Specification
CE & ROHS
🛡️

Product Overview

This key lock is a hugely popular lock with a robust dead bolt design. Featuring a standard footprint, it is ideal for safes CEN 0-II, providing high security for small businesses, offices, and domestic environments.

Key Features & Standards

  • Certified: VdS Class 1, EN1300 Class A standard
  • 8 High-Security Levers
  • Electrolytic Galvanised Steel Construction
  • Key Retained when in Open Position
  • Die-cast Lock Case and Bolt
  • Approx 10 million theoretical variations
  • Protection against theft & burglary resistance
  • Standard mounting holes to fit safes firmly

Advanced Security: This mechanical key lock offers unprecedented security levels. It is designed for initial installations where reliability is paramount. The 8-lever system and die-cast dead bolt (with 2 M4 threads and 8.5mm throw) ensure maximum resistance.

📸

Visual Display

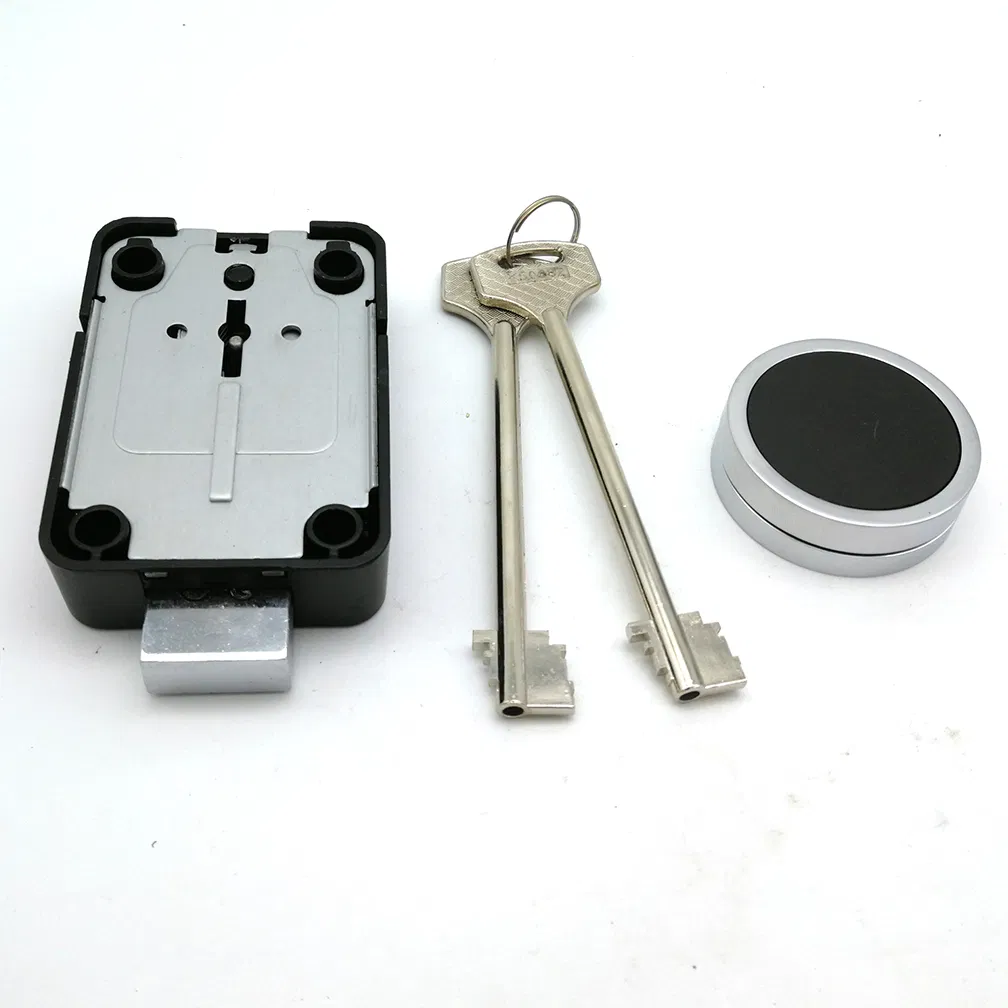

Mechanical Double Bit Key Safe Lock

8 Lever Mechanical Double Bit Key Safe Lock

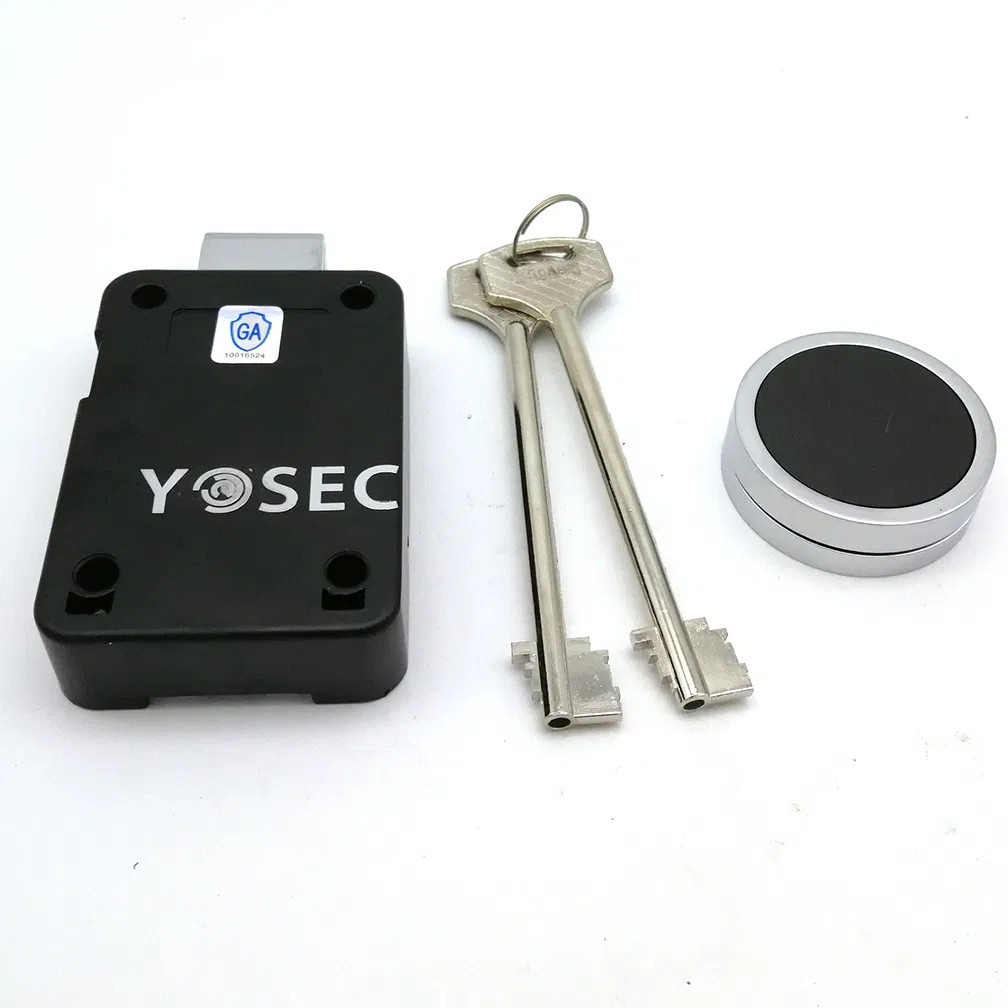

Double-bit mechanical key Lock with dead bolt

Double-bit mechanical key Lock with dead bolt

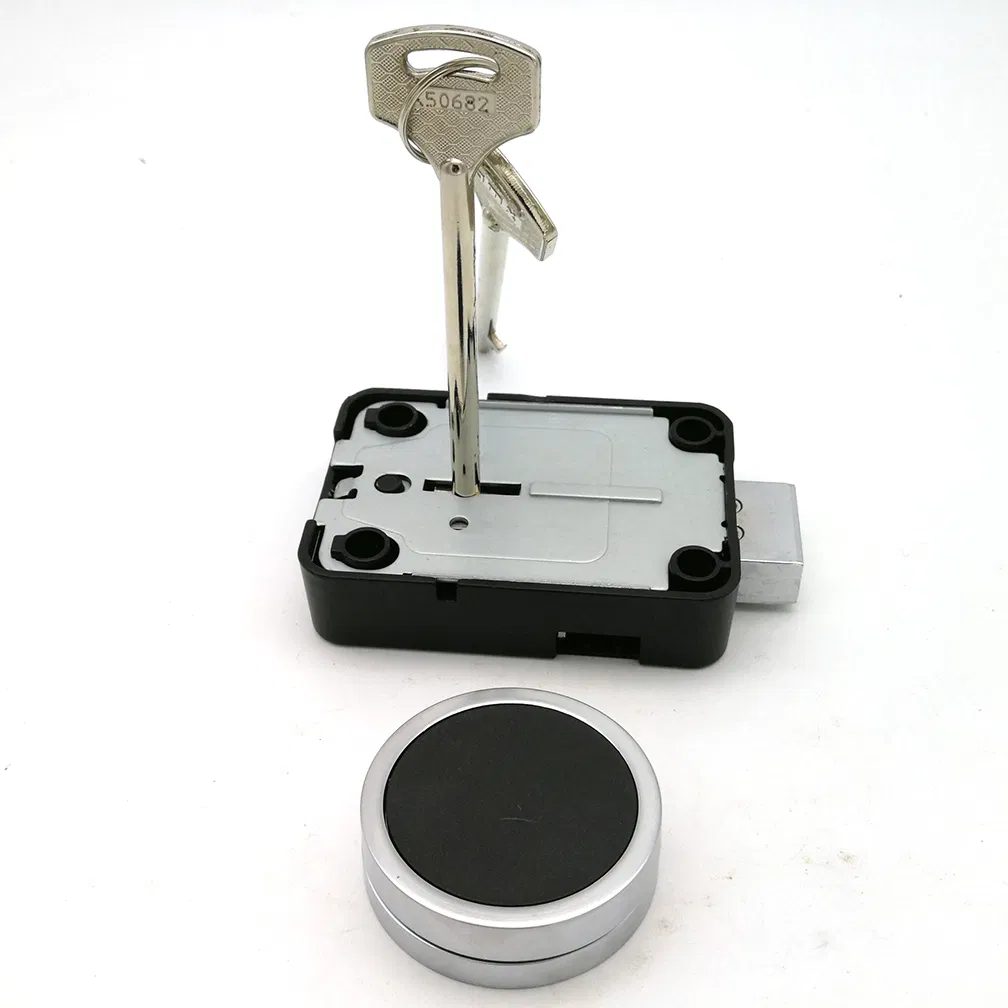

High Variation Lock Mechanism

Approx. 280,000 theoretical variations

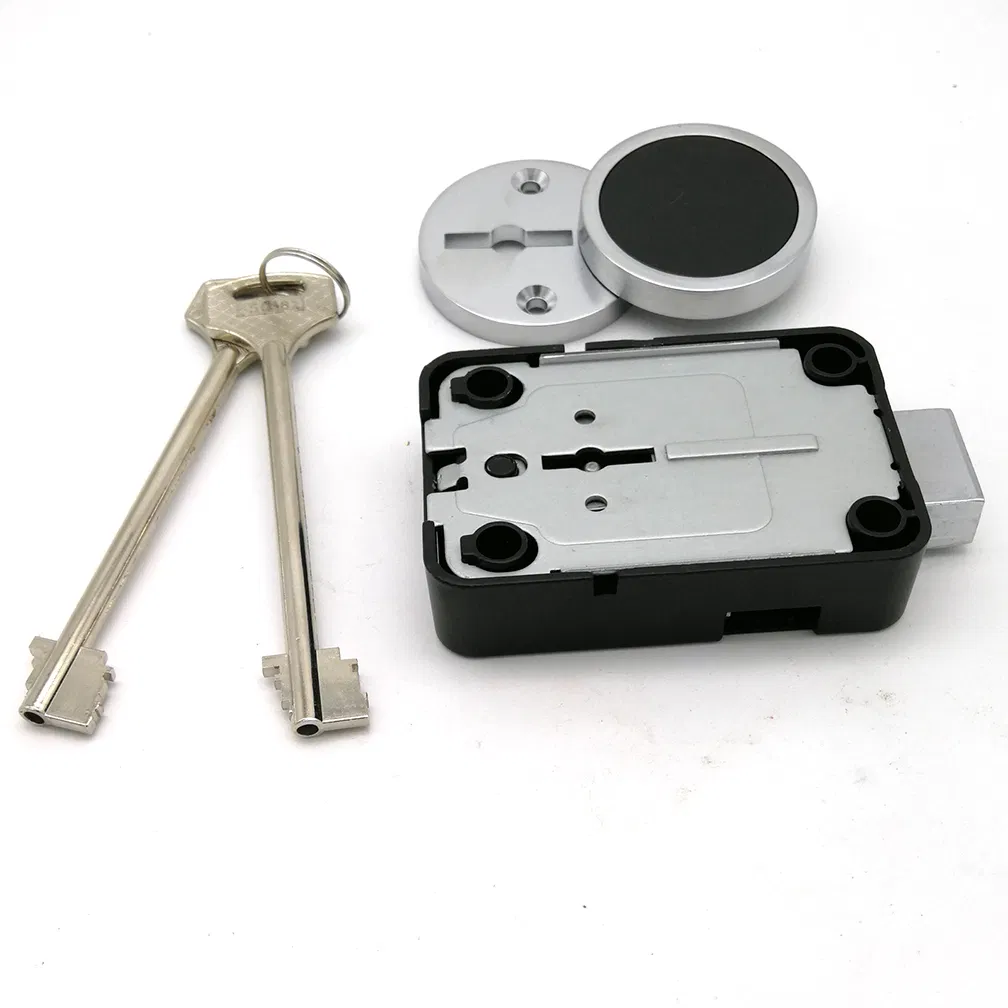

Solid Security Key

Solid key for extra security and durability

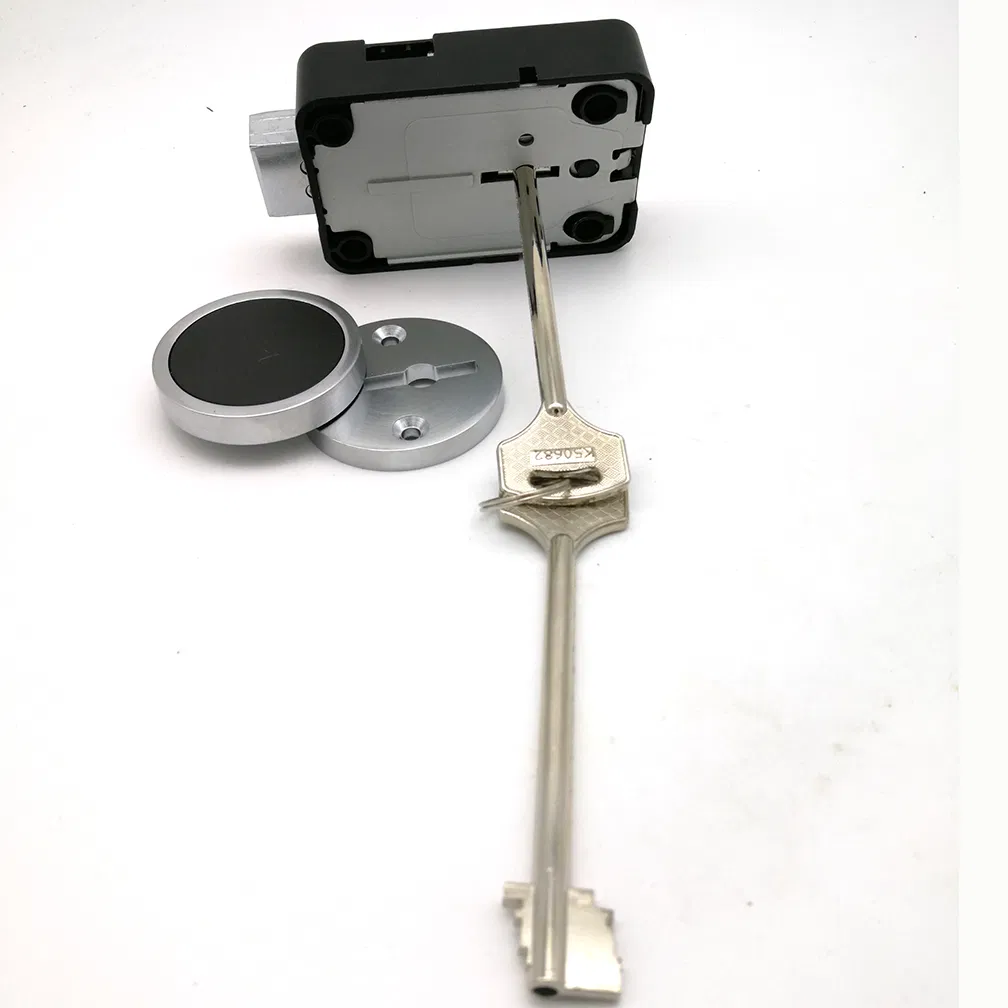

Multiple Key Lock Selection

Various key lengths and styles available

❓

Frequently Asked Questions

What security certifications does this lock hold?
The lock is certified to VdS Class 1 and EN1300 Class A standards, ensuring high-level burglary resistance.
Can the key be removed while the safe is open?
No, the lock features a key-retained function, meaning the key stays in the lock when it is in the open position to ensure security.
What is the weight and material of the lock?
The lock weighs approximately 350g and is constructed from die-cast electrolytic galvanised steel for the case and bolt.
How many keys are supplied with the unit?
Each lock comes standard with 2 double-bit keys. Different key lengths can be customized based on door thickness.
Is this lock suitable for commercial safes?
Yes, it is specifically designed for safes CEN 0-II and is widely used in business, office, and vault applications.
What is the theoretical key variation for this lock?
This 8-lever mechanical lock offers approximately 10 million theoretical variations, providing extreme protection against picking.
