Basic Information
Position
Commercial/Industry etc.
Surface Finishing
Finished
Production Capacity
40000 Sets/Year
Product Description

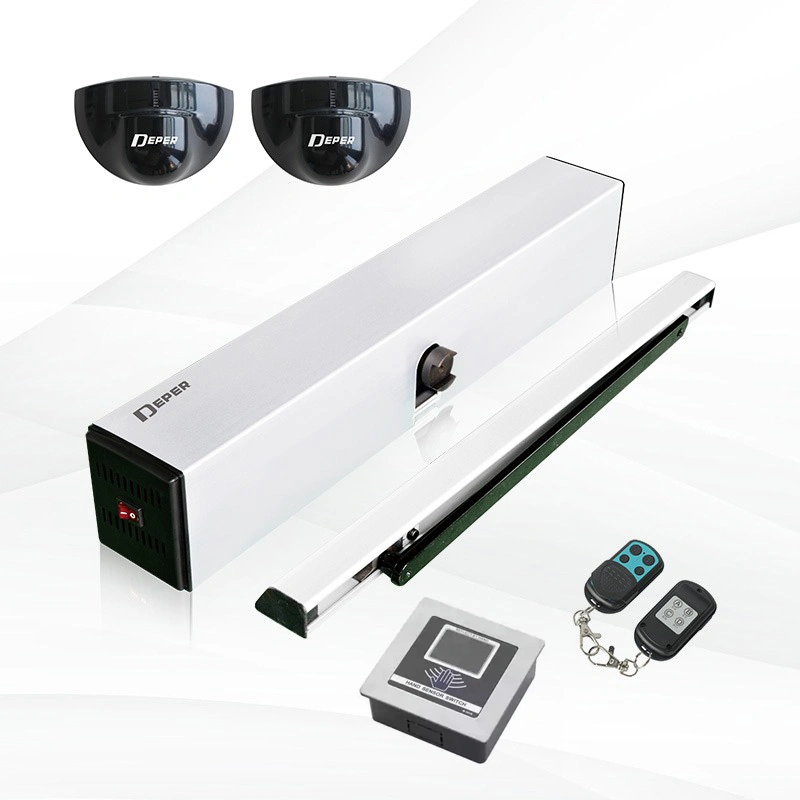

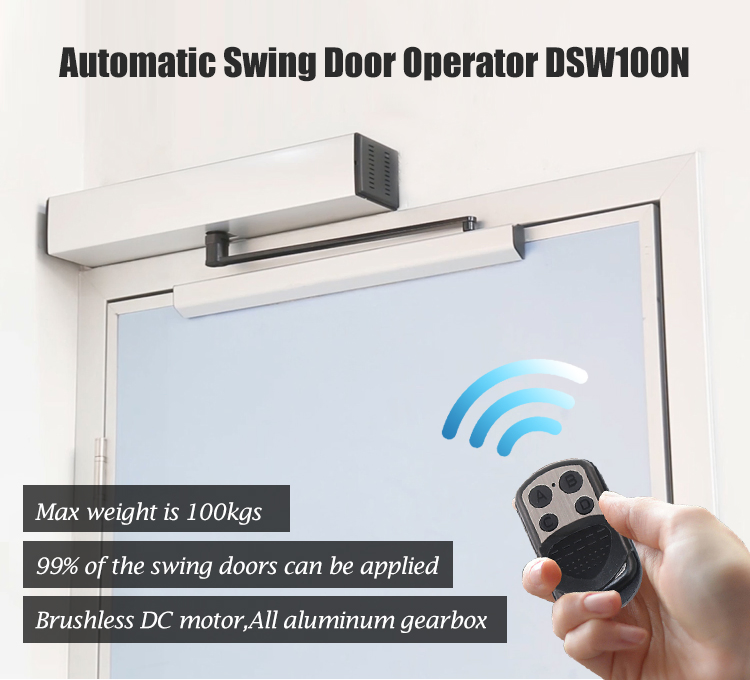

Automatic Swing Door Closer
- Swing Auto-Door can be opened and closed automatically in any ordinary doors, widely used in offices, hospitals, commercial and industrial environments.

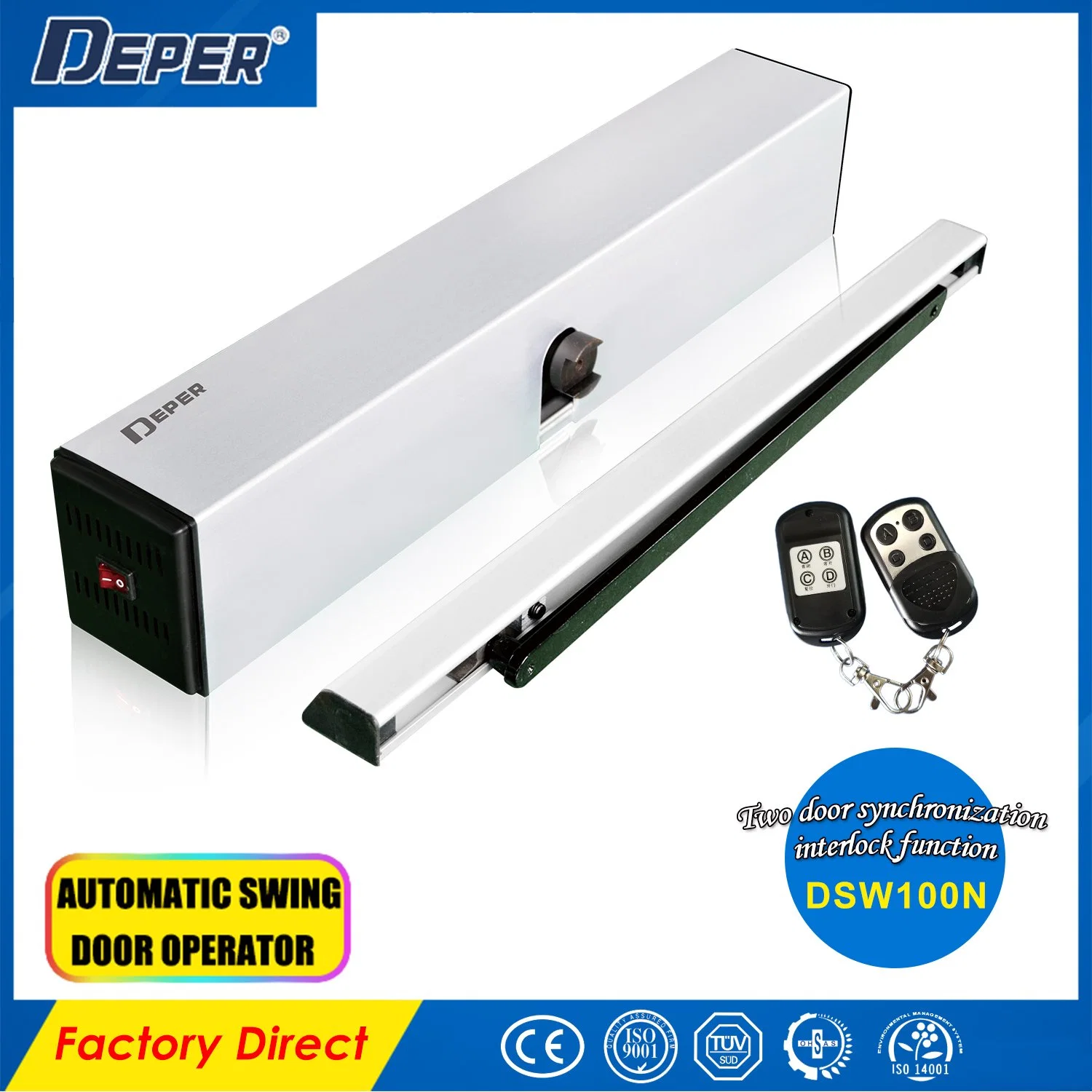

- The DSW-100N is an upgraded transformer-less drive offering a wider range of supply power voltages.

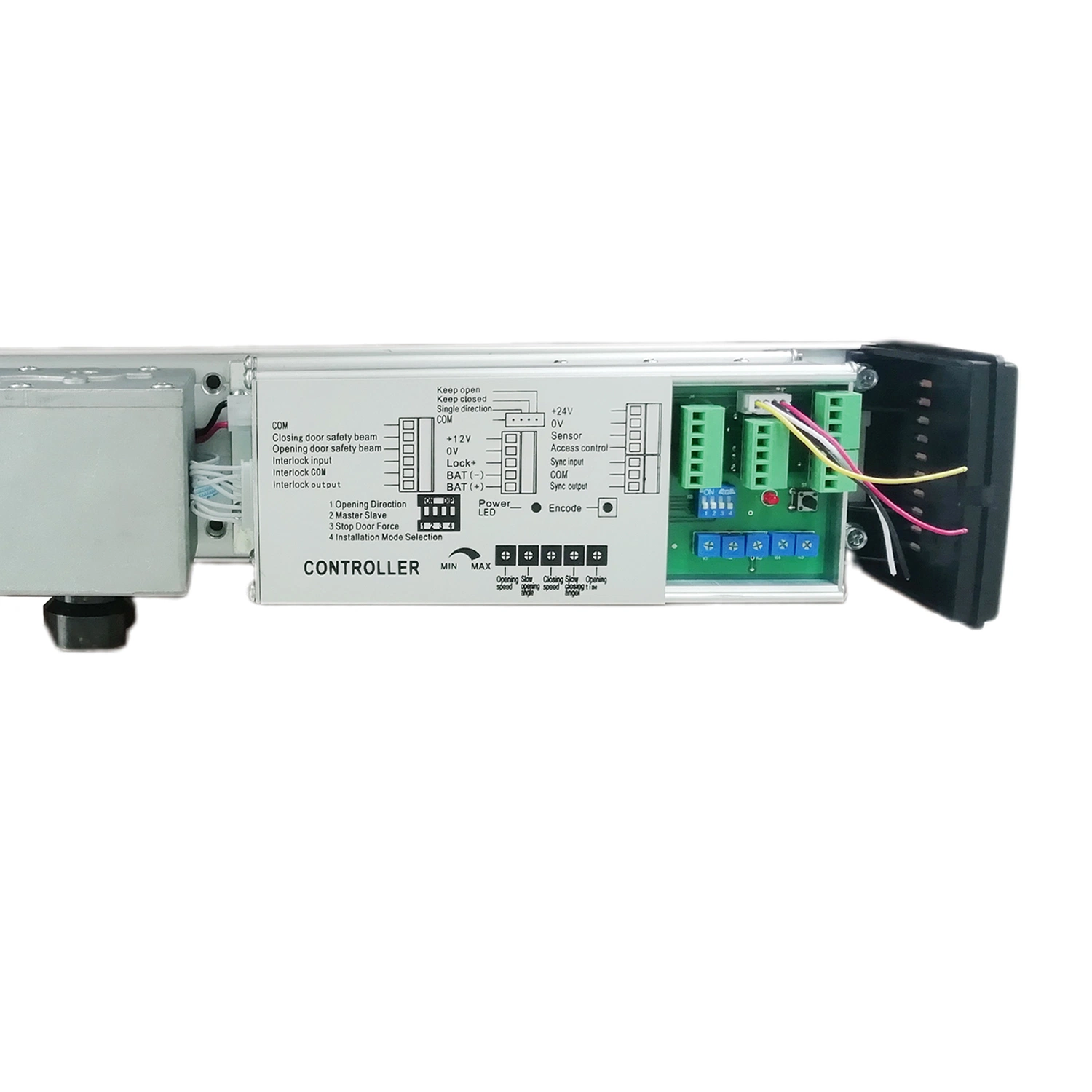

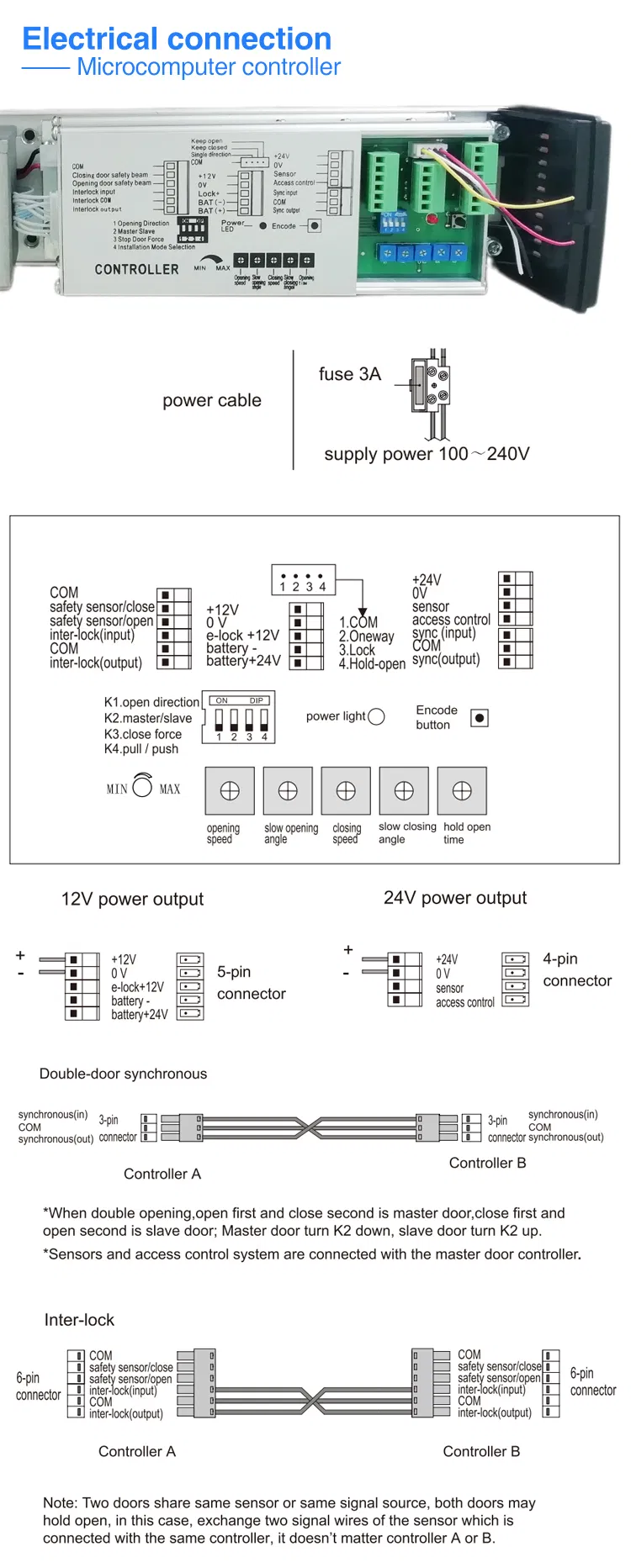

- Equipped with interfaces for sensors, access control, security sensor protection, magnetic electric locks, and backup batteries.
- Supports interlocking functions between doors for enhanced security and environment control.
| Product Name | Automatic Swing Door Closer |
| Door Form | Single Door |
| Carrying Weight | ≤1 x 100kg |
| Applicable Door Width | ≤1200mm |
| Power Supply Voltage | AC220V±10%, 50/60Hz |
| Opening Time | 3-7S/90° (adjustable) |
| Hold Open Time | 1-30S (adjustable) |
| Protection Level | IP12D |
| Product Weight | 6.5kg |
| Product Size | 520X95X82mm / 540X95X82mm |
| Ambient Temperature | -20 ~ +55° |
Product Advantages
- Quiet Operation: Low noise drive unit provides reliable and safe performance for convenience.
- Security: UPS power can be configured to meet strict security requirements.
- Safety Obstacle Detection: If the door encounters obstacles or personnel during operation, it automatically opens in the opposite direction.

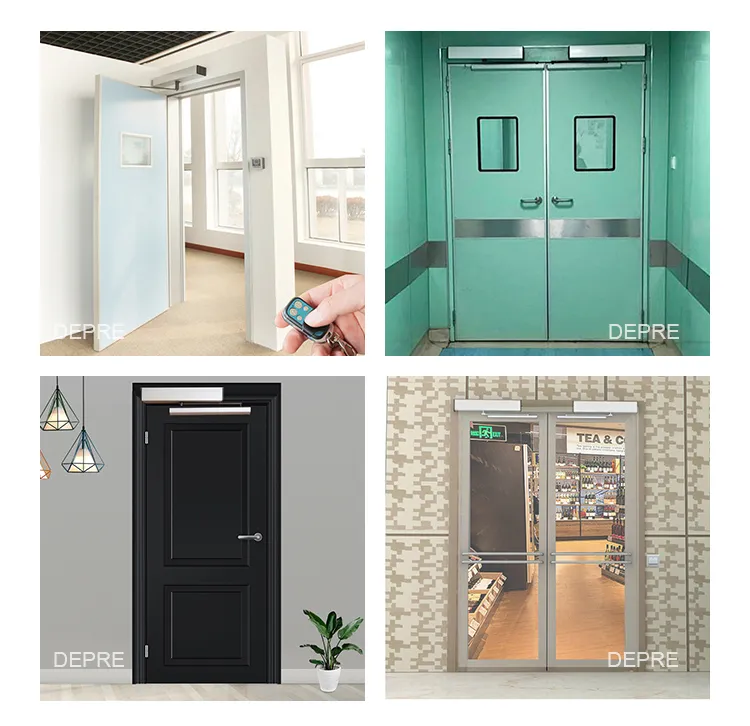

- Versatile Application: Ideal for office buildings, storefronts, banks, factories, restaurants, hotels, laboratories, and hospitals.

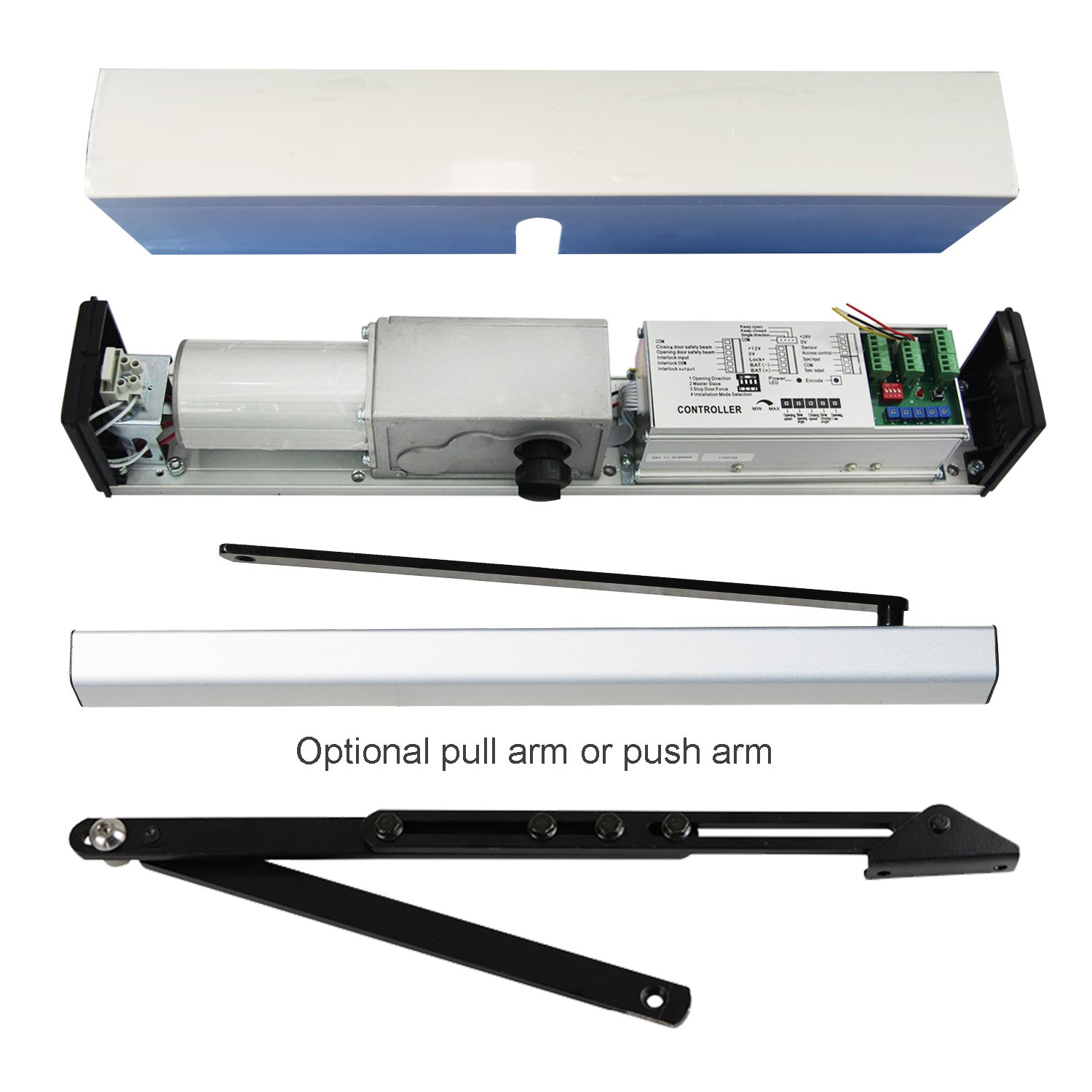

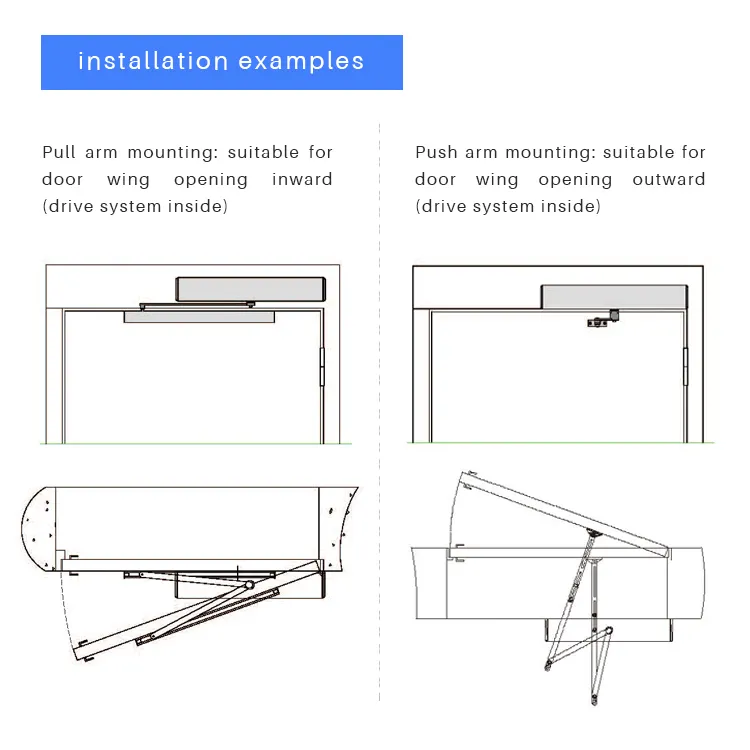

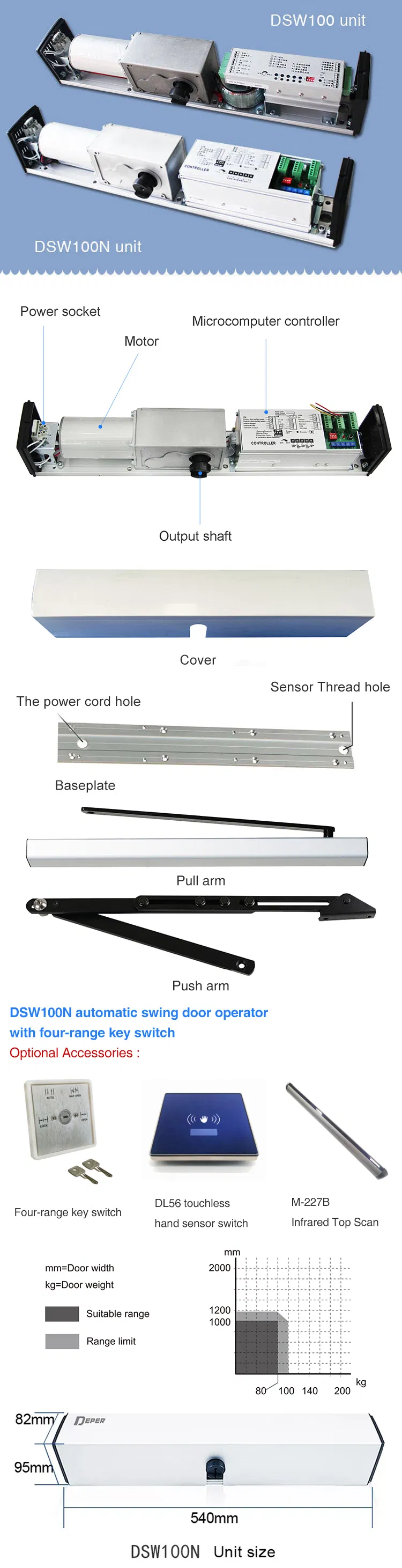

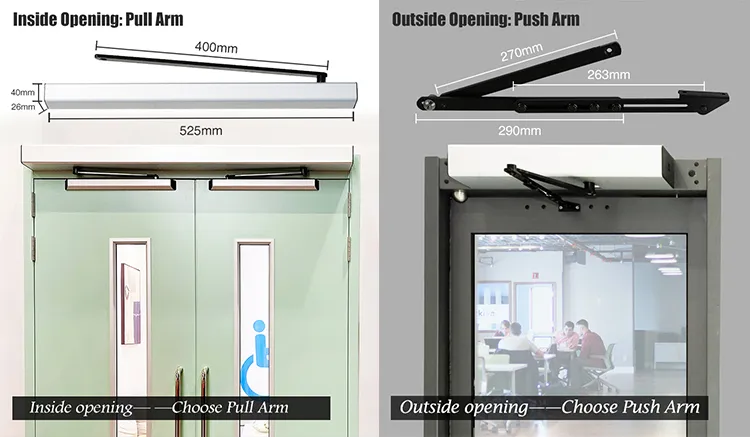

Installation Options: Pull Arm or Push Arm based on opening direction.
Quality & Manufacturing
Our products comply with international standards including "GF" EU certification and "AVC" certification. The manufacturing facility is ISO9001:2015, ISO14001, and OHSAS18001 certified, ensuring high-quality production and environmental management.
Our Service Capabilities
- Fast response times for inquiries within 12 hours.
- Strong R&D team capable of meeting custom design requirements.
- Rapid delivery: Samples in 1-3 days, bulk orders in 3-5 days.
- OEM/ODM services including customized packaging and logo design.
Frequently Asked Questions
What types of doors are compatible with this automatic swing door closer?
It is designed for any ordinary swing doors up to 1200mm in width and 100KG in weight, suitable for office, medical, and industrial environments.
Is the device safe for high-traffic areas with children or elderly people?
Yes, it features a safety obstacle detection system. If the door touches anyone or anything during operation, it will immediately reverse to prevent injury.
Can I connect this to my existing access control system?
Absolutely. The DSW-100N provides standard interfaces for sensors, access control systems, magnetic electric locks, and security sensors.
What happens during a power outage?
The system can be configured with a UPS backup power supply to ensure continued operation and security during power failures.
How adjustable are the opening and closing speeds?
Both the opening time (3-7 seconds for 90°) and the hold-open time (1-30 seconds) are fully adjustable to suit your specific site requirements.
Does it support both left and right opening doors?
Yes, the unit supports both directions. You simply choose between a Pull Arm or a Push Arm configuration depending on your door's opening direction.
