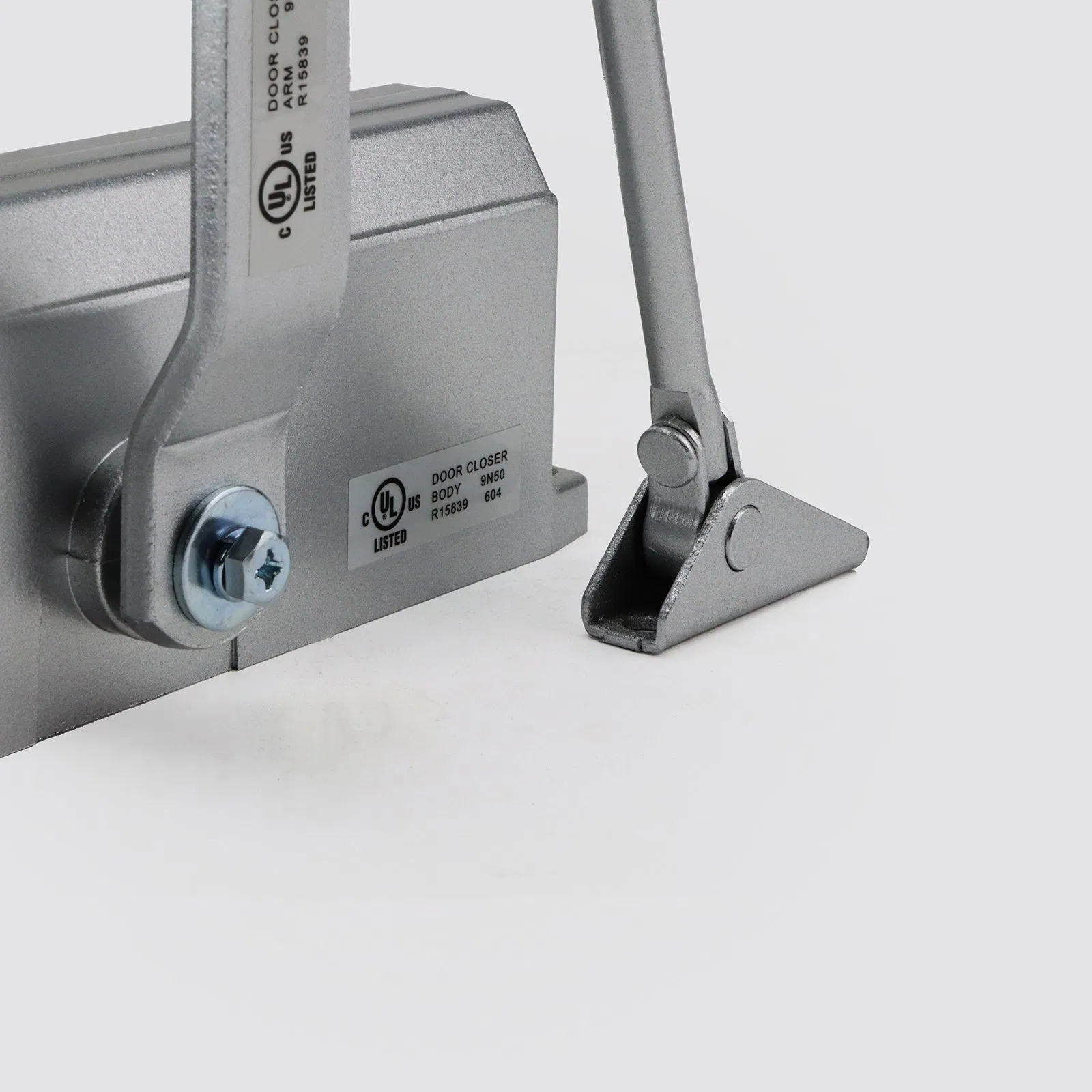

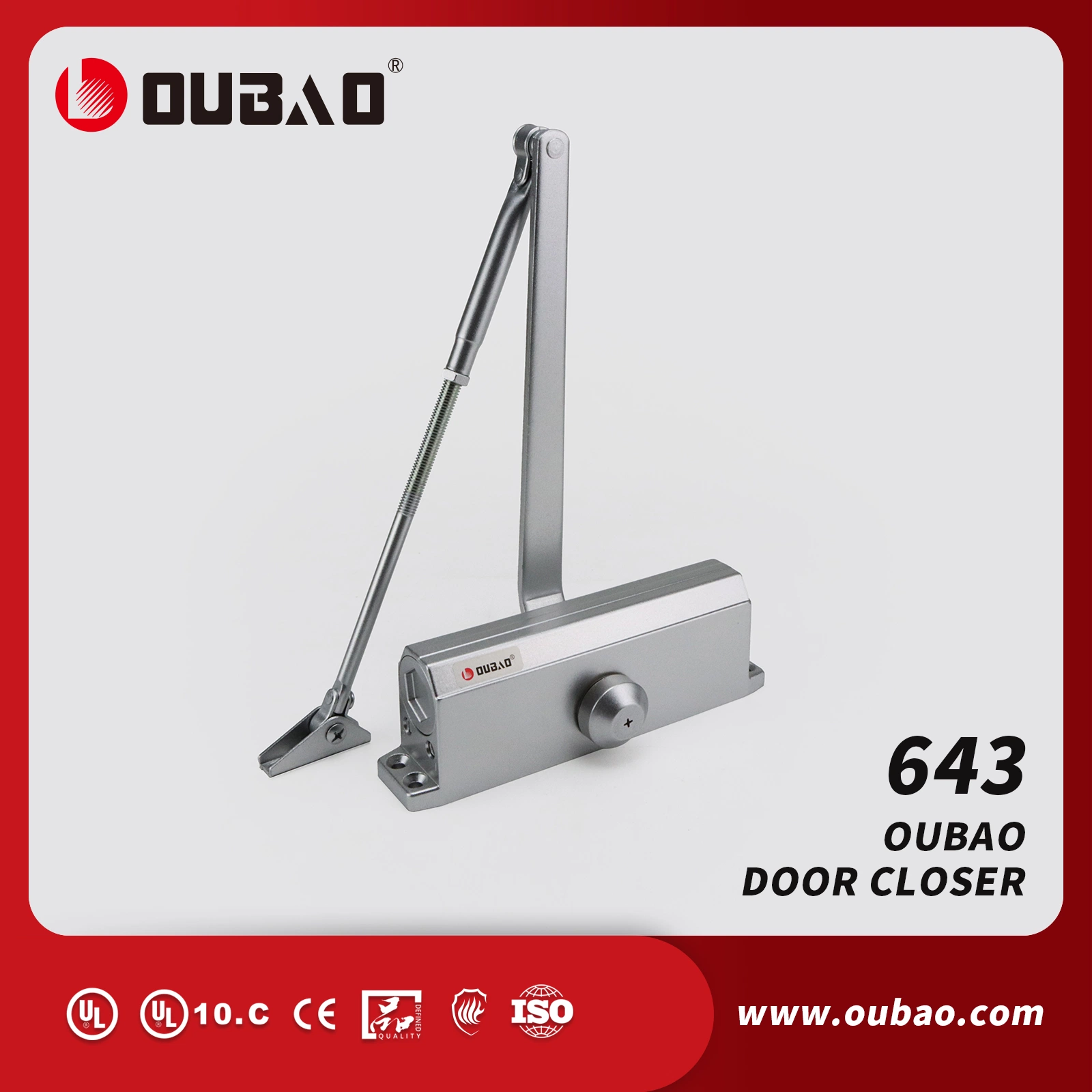

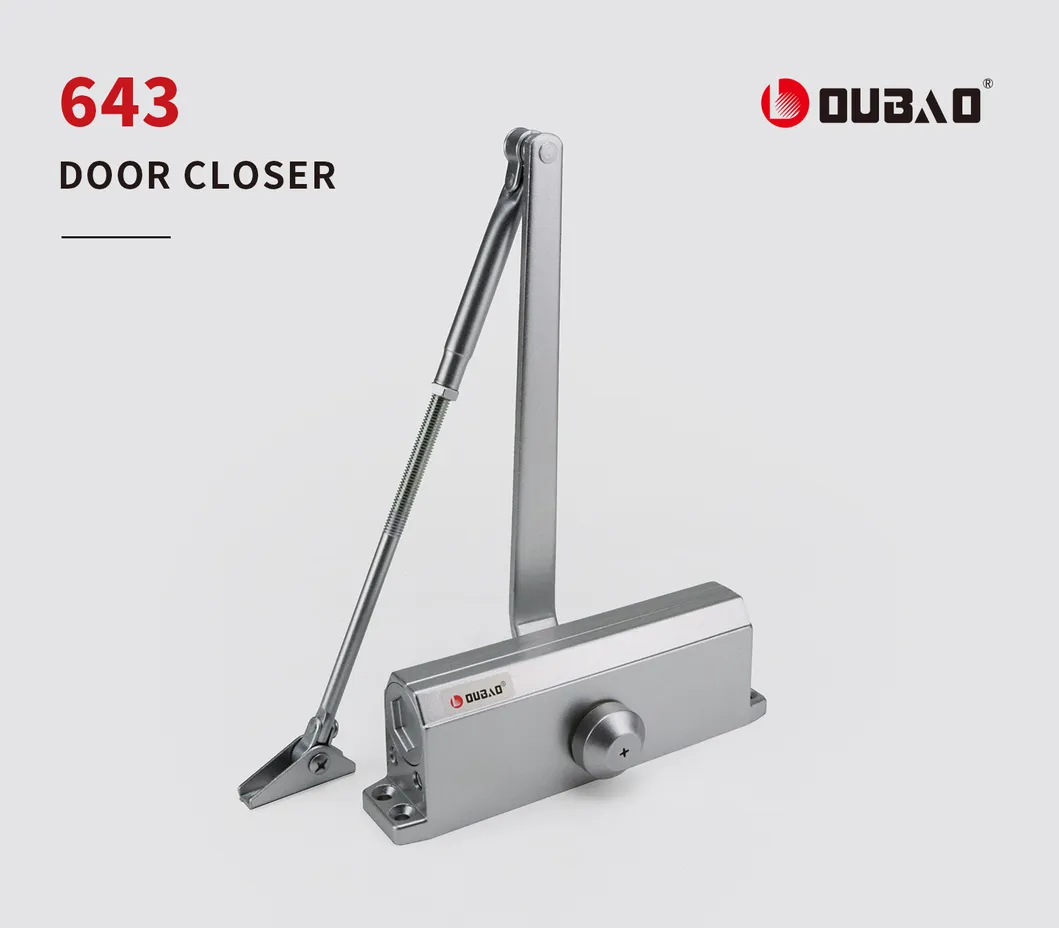

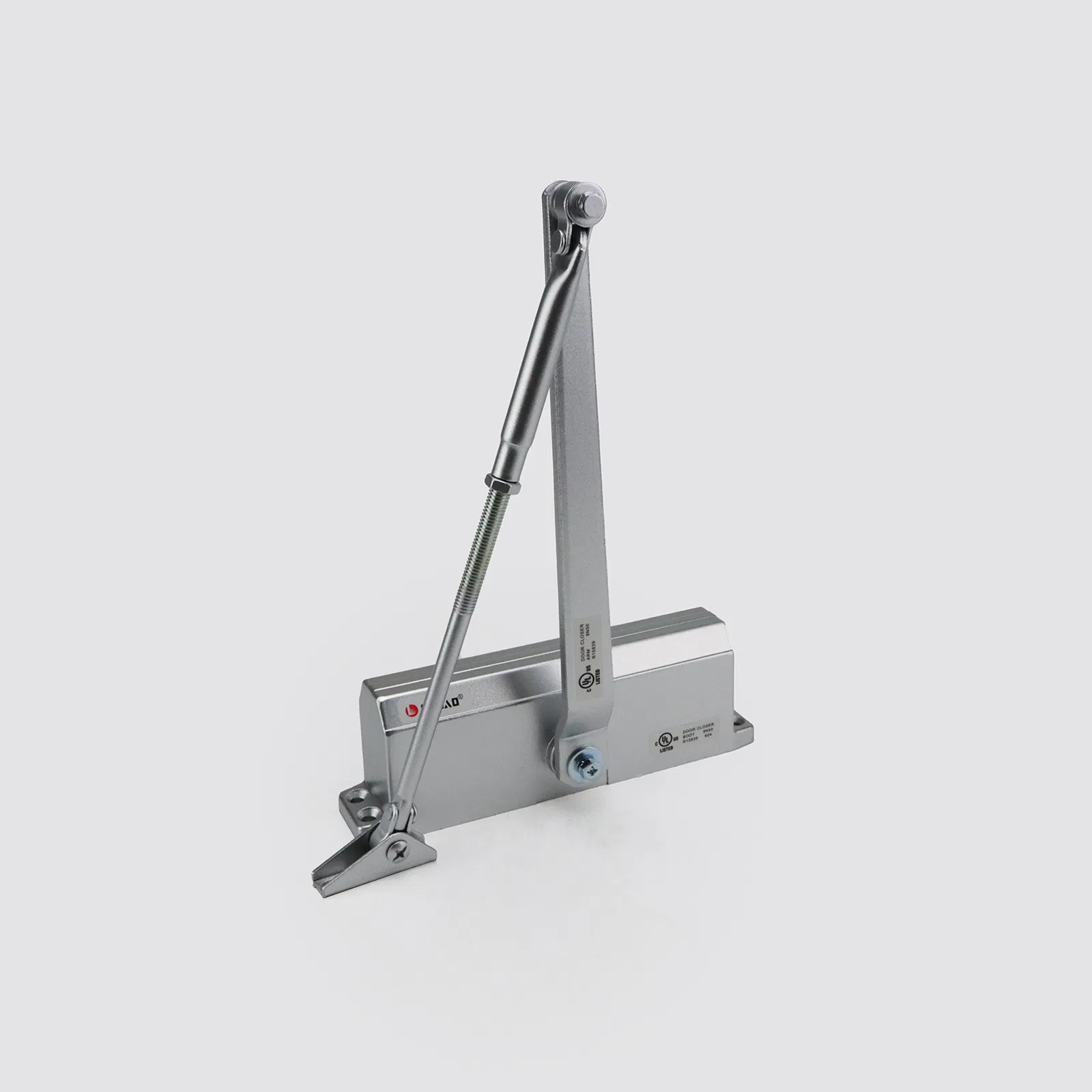

UL Certified Aluminum Automatic Door Closer for Commercial Fireproof Doors 40-65kg (643)

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
643
Material
Aluminum Alloy
Type
Outside-mounted
Installation
Standard, Parallel and Door Frame
Function
Stop, Fixed, Delay, Adjustable, Buffered
Standard
American and European
Door Width
950mm
Door Weight
45~65Kg
Usage
Market, Fire Exits, Home, Hotel, Office, Hospital, School
Color
Silver
Production Capacity
5,000,000 PCS/Year
Origin
China

Product Description

  • 500,000 Cycles Guaranteed In Endurance
  • UL listed & UL 10C 3 Hours Fire Rated
  • With CE Certification (Number 0905-CRP-000071-01)
  • Two separate valves adjustable closing & latching speed
  • Work Temperature: -30ºC To 60ºC

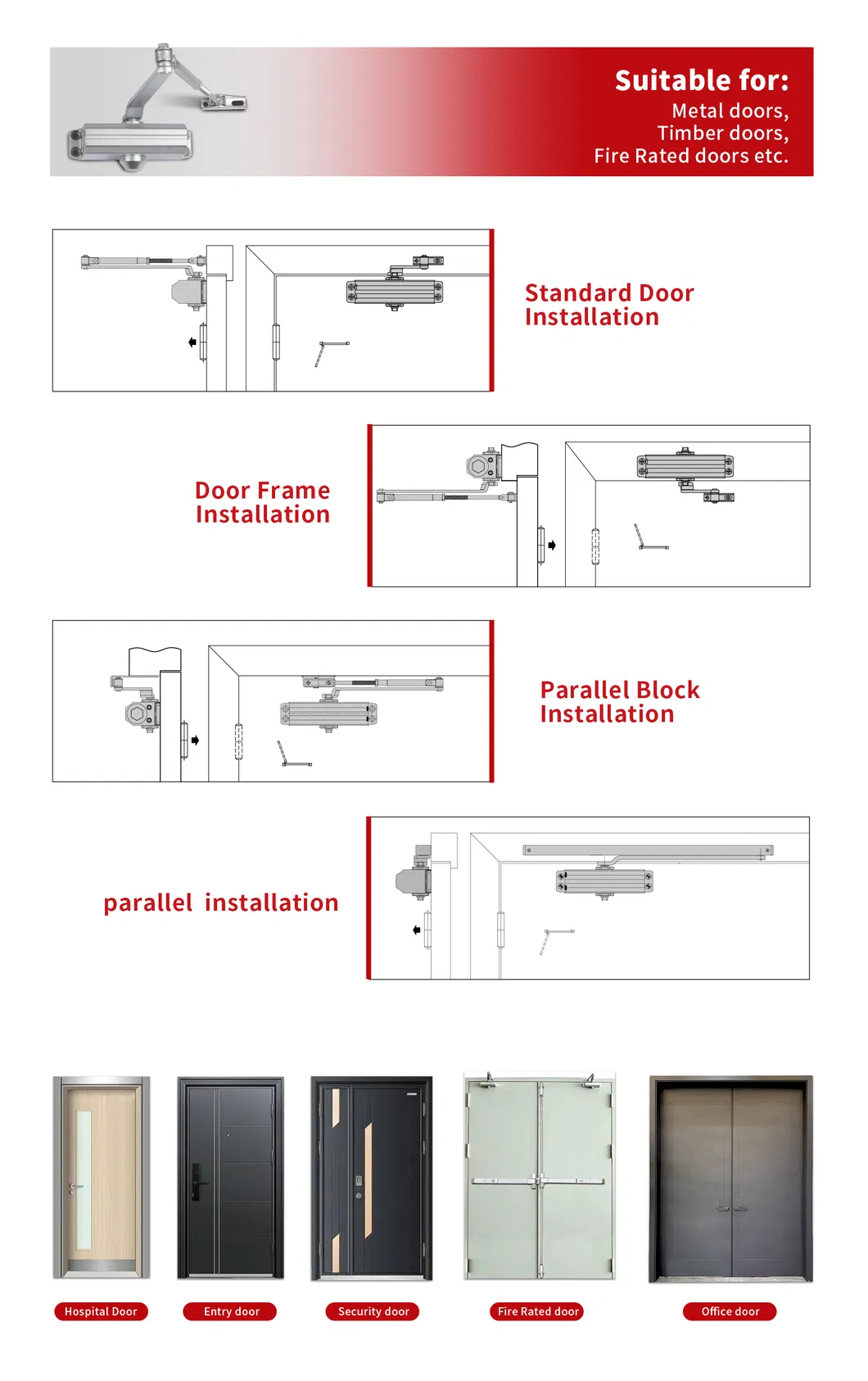

  • Universal Application: Standard, Top-Jamb
  • Parallel Arm installation (P.A. Bracket provided upon request)

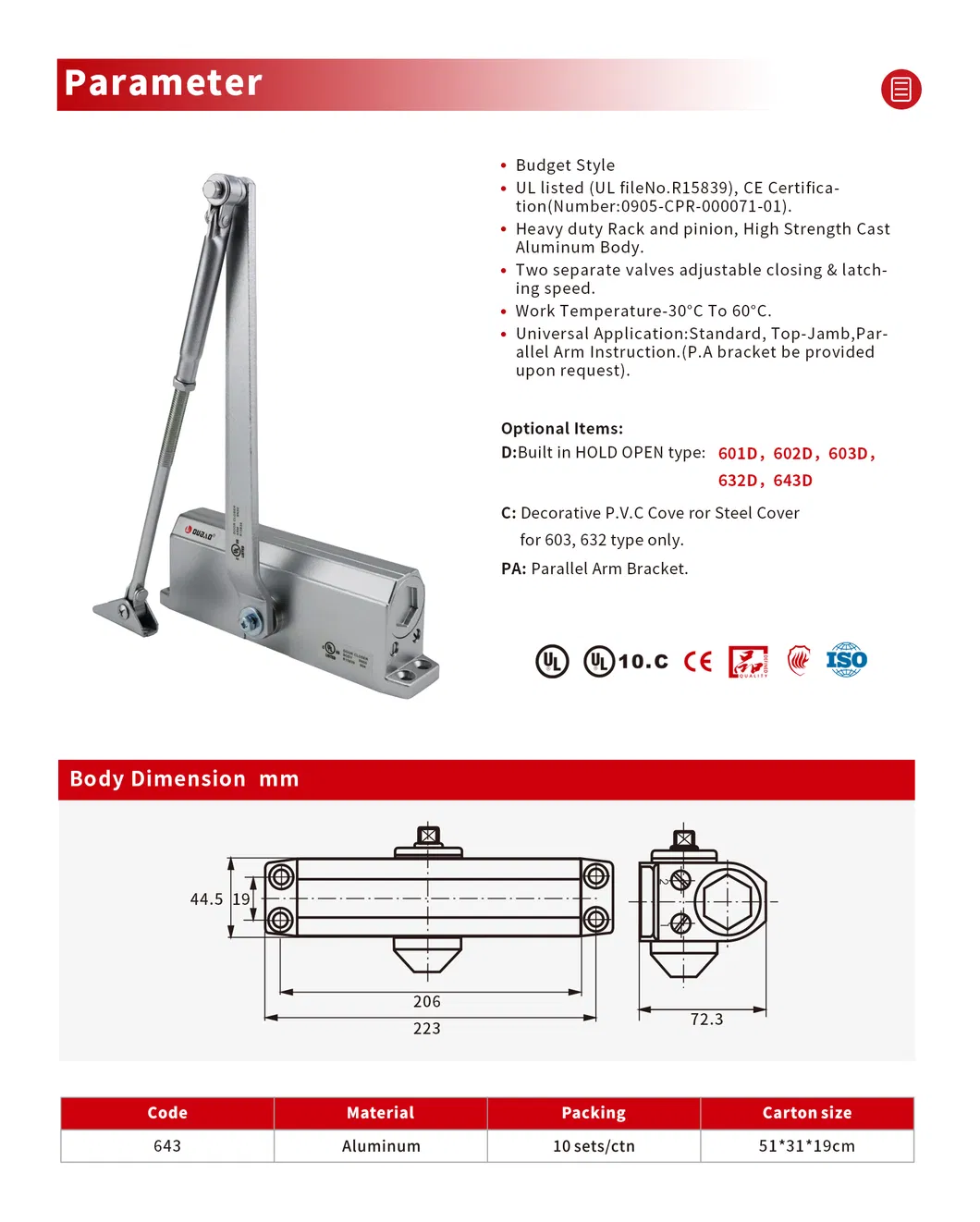

TECHNICAL INFORMATION & FUNCTION
Width of Door (mm) Max.950 mm
Weight of Door (kg)40~65 kg
Back check FunctionN/A
Max. Open Angle180°
Hold-OpenOptional (with Hold Open Slide Arm)
Fire DoorYes, UL 3 hours Fire Rated
Closing SpeedSpeed 1Max Open Angle~10°
AdjustmentSpeed 210°~0°
ApplicabilityCan be used for left and right-hand doors

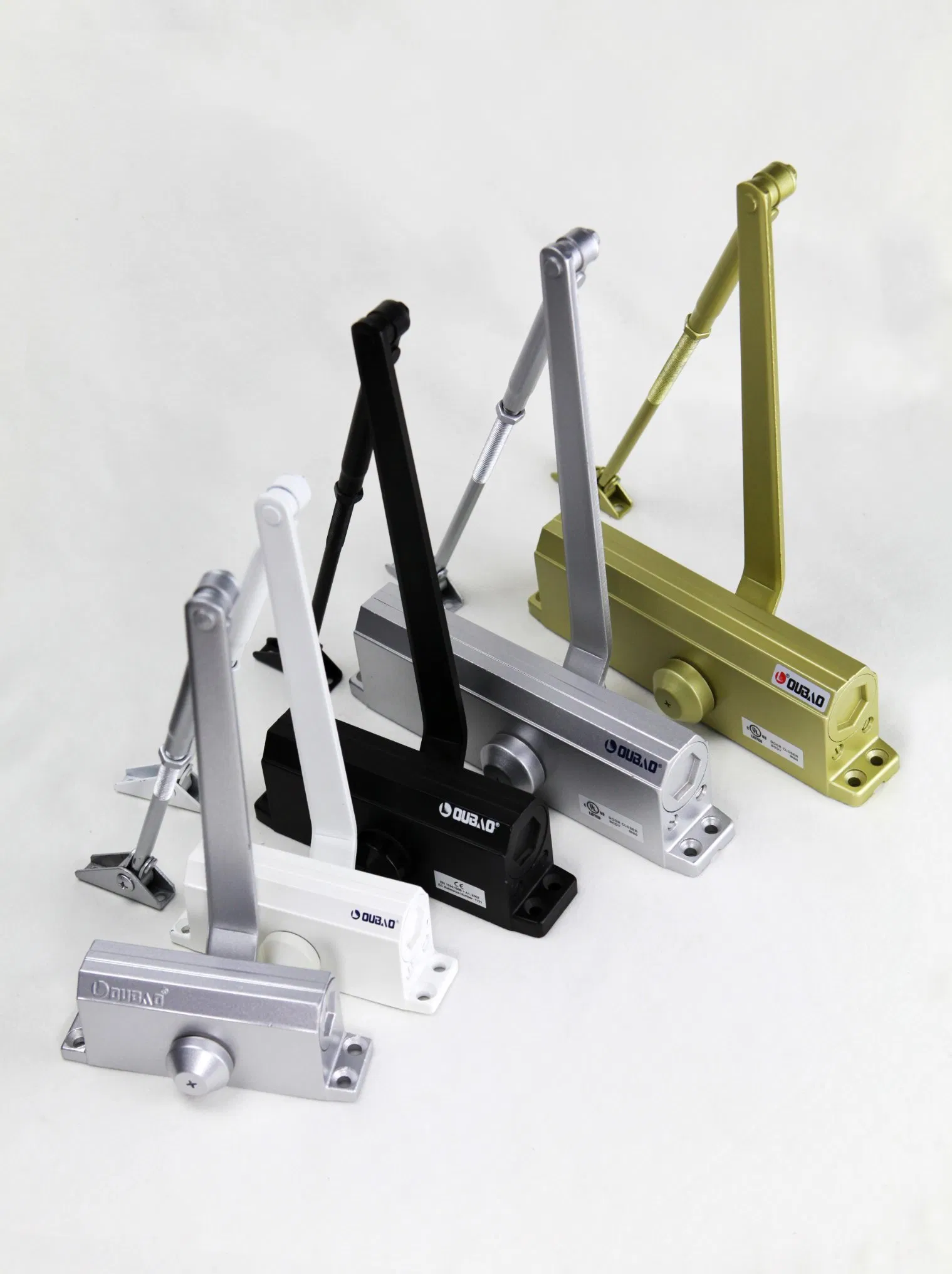

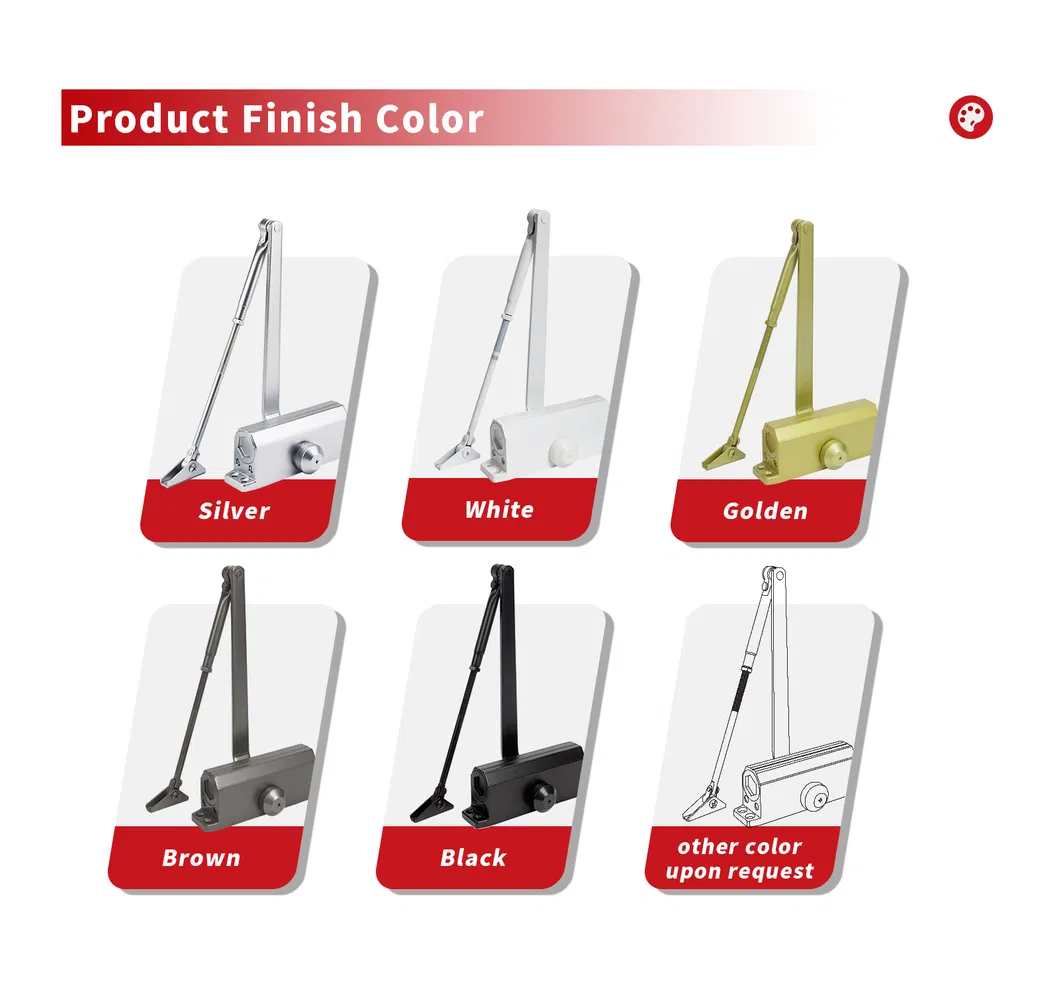

Various FinishSILVER, GOLD, BROWN, WHITE, BRONZE, BEIGE, BLACK

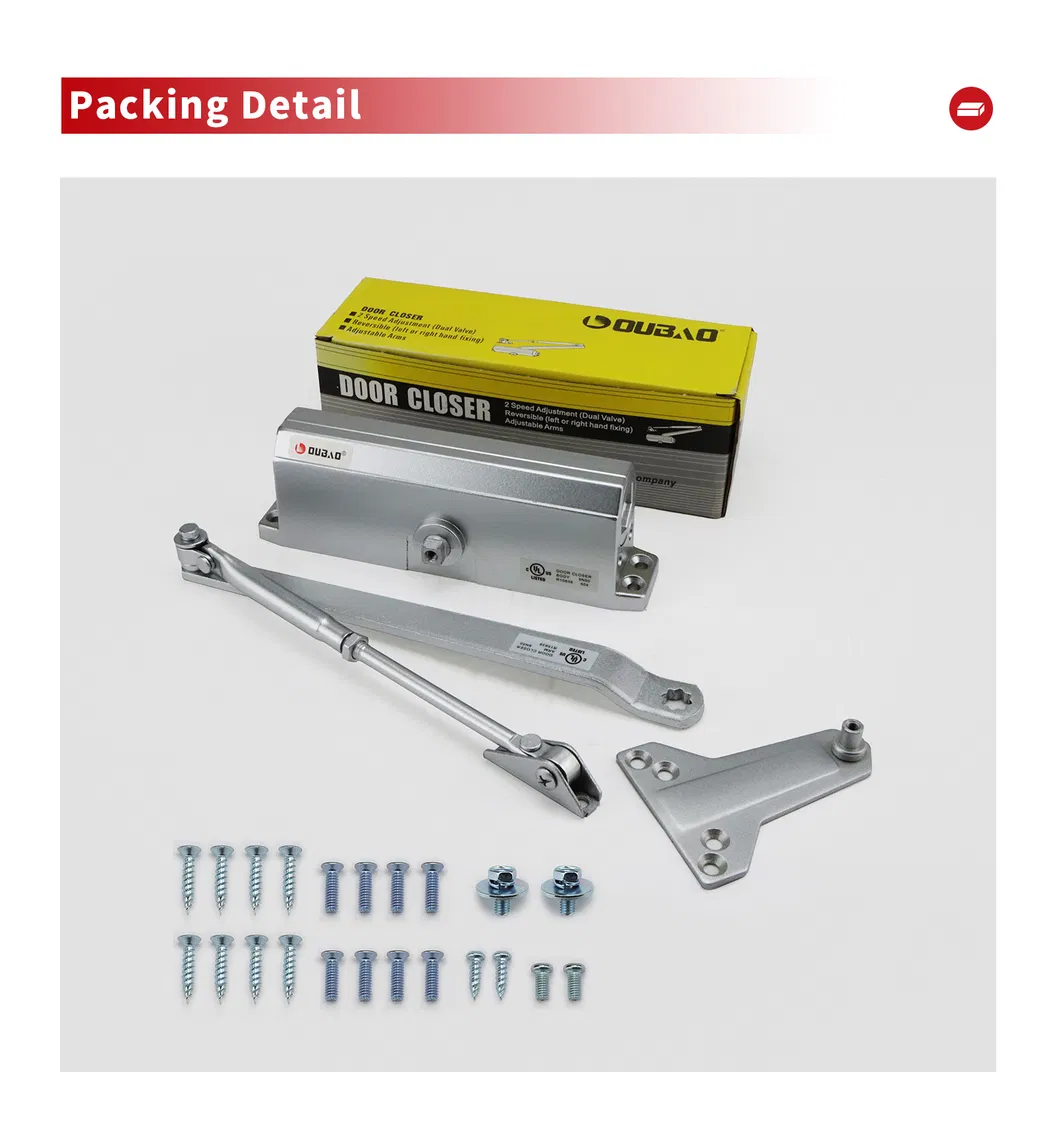

Code Material Packing Carton Size
643 Aluminum 10 sets/ctn 51*31*19 cm

Product Visuals

Frequently Asked Questions

What certificates do you have for this door closer?
We have CE, UL, ANSI, UKCA, BHMA and CERTIFIRE certificates. All of our products follow international standards.
Do you accept OEM or ODM orders?
Yes, we fully support both OEM and ODM services to meet your specific requirements.
Can I request samples before placing a bulk order?
Sure, we can provide samples for quality checking and verification before you proceed with an order.
How long is the typical delivery time?
The standard delivery time is approximately 30 days.
What are the accepted payment terms?
We accept various payment methods including T/T, L/C, and D/P.
What is the quality warranty period?
We provide a 5-year quality guarantee for our door closer products.
