Customization: Available
After-sales Service: Technical Support & Customization Service
Warranty: 1
Send Inquiry

Product Description

Basic Information
Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Anti-theft Standard
A
Backset
70mm
Usage
Household Door Locks, Bedroom, Channel Lock
RFID
MIFARE Plus, MIFARE, DESFire EV1/EV2, ISO14443b
Secure Interface
Sam Slot & Secure IC Eal5+ Level
BLE Wireless
BLE 5.3 Master & Slave Mode, Beacon, Zigbee
Power
3V, 4 * Battery
Product Overview
Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low battery-operated power consumption design, which contain the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.

Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meet the high security application.

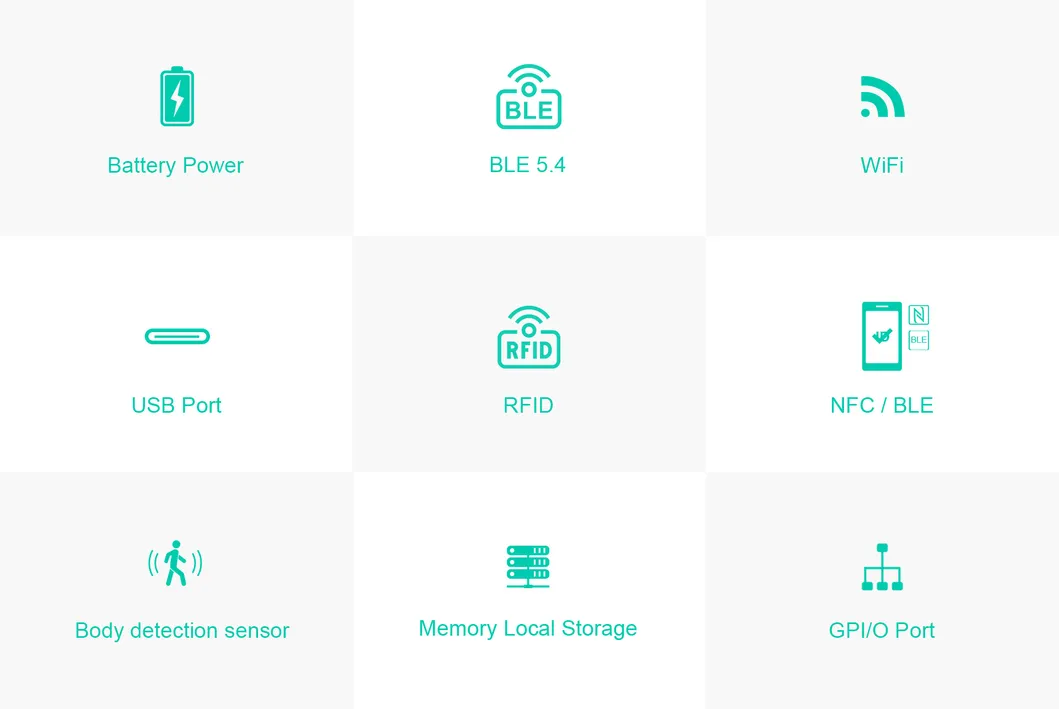

Product Overview
Product Features

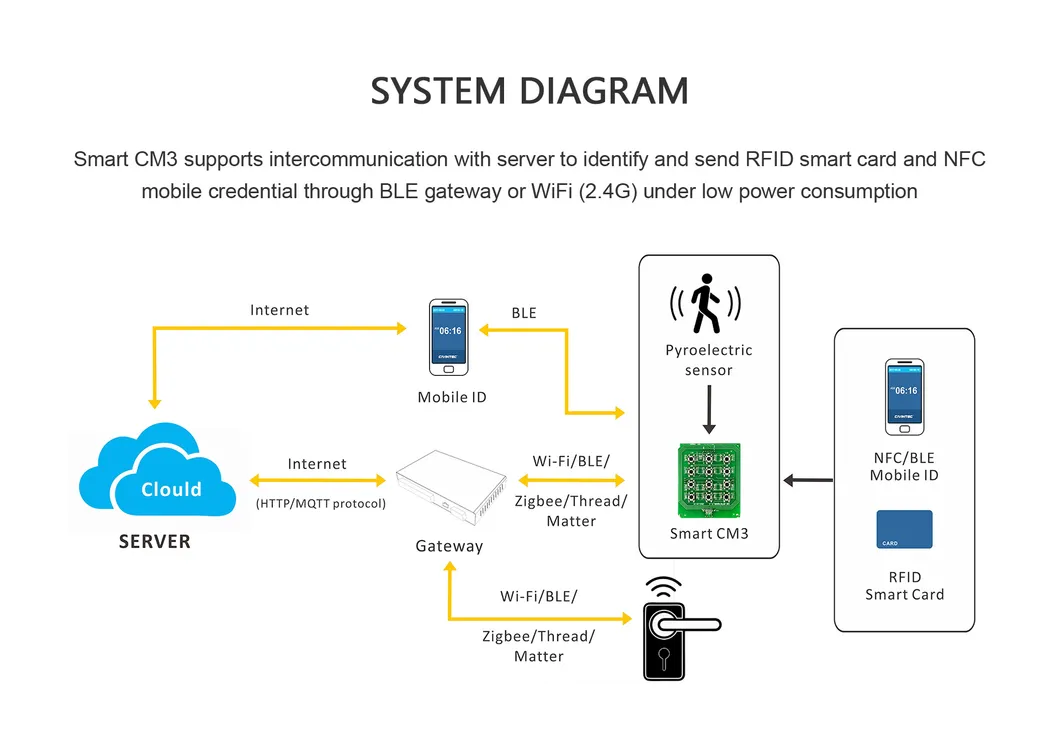

Features 1
Features 2
Features 3
Key Advantages
  • ✔ Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
  • ✔ Support Arm® TrustZone® for high security
  • ✔ Rich I/O port for electric lock control
  • ✔ Economic solution for battery powered ultra-low power consumption
  • ✔ Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
  • ✔ Embedded software development with Body detection

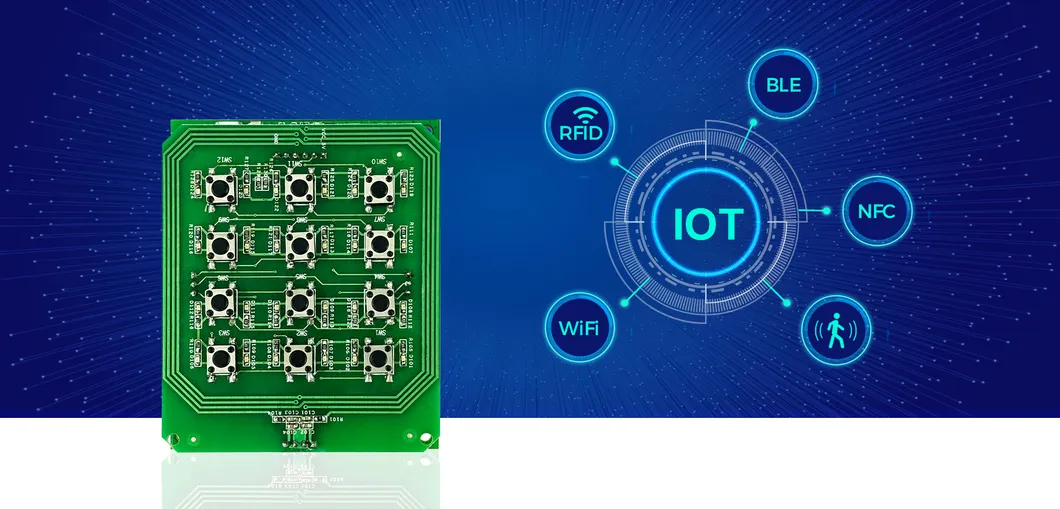

Advantages Diagram
Technical Specifications
Parameter Details
Memory4M BYTE
Power SupplyUSB or 3V / 4 * battery
RFID Standards13.56MHz ISO14443A, ISO15693 and ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, Ultralight C, Plus S/X, NFC tag, HID iCLASS
Secure InterfaceOptional SAM slot ISO7816; Support SAM AV2; Secure IC for MCU protection (EAL5+ Level)
Mobile CommunicationNFC mobile phone & BLE 5.3
Keypad12 digit mechanical keypad
InterfacesWiFi, BLE 5.3 (Master/Slave, Beacon, Thread, Zigbee, Mesh), USB
IndicatorsBuzzer and Bio-color LED
Operating Temp-20ºC ~ 60ºC
ConfigurationConfiguration card, reader tool software or factory configured
Production Capability
Production and Certificates
Frequently Asked Questions
What is the main benefit of the BLE 5.4 platform in the CM3?
The BLE 5.4 platform provides ultra-low battery-operated power consumption and supports multiple wireless protocols like Zigbee, Thread, and Matter for versatile connectivity.
Which RFID card types are compatible with this device?
It supports a wide range of 13.56MHz technologies, including Mifare Classic, DESfire EV1/EV2/EV3, Ultralight, NFC tags, and HID iCLASS CSN.
How does the CM3 handle high-security requirements?
It integrates Arm® TrustZone® technology, securable I/Os, and optional SAM slots (EAL5+ Level) to ensure secure data encryption and communication.
Can the device be managed via a mobile phone?
Yes, it supports both NFC and BLE 5.3 for mobile credentials, allowing users to use their smartphones for access control.
What are the power supply options?
The CM3 can be powered via a USB connection or through a 3V battery setup (using 4 batteries) for wireless installations.
What is the operating temperature range?
The device is designed to operate reliably in temperatures ranging from -20ºC to 60ºC, making it suitable for various environments.
