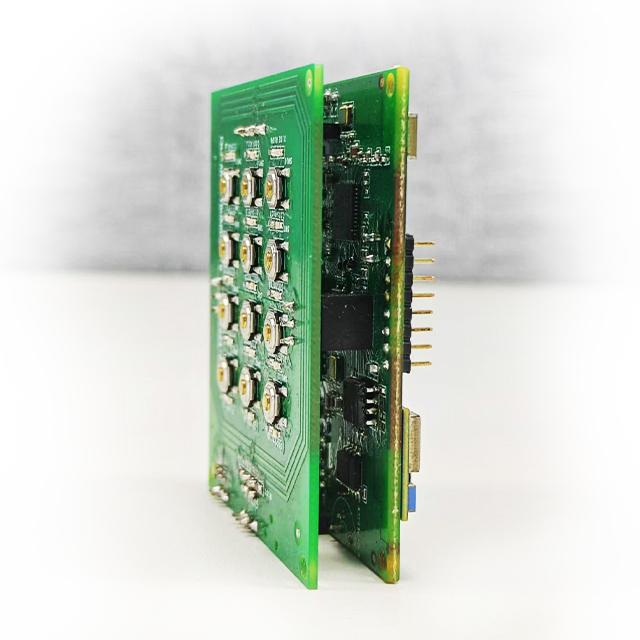

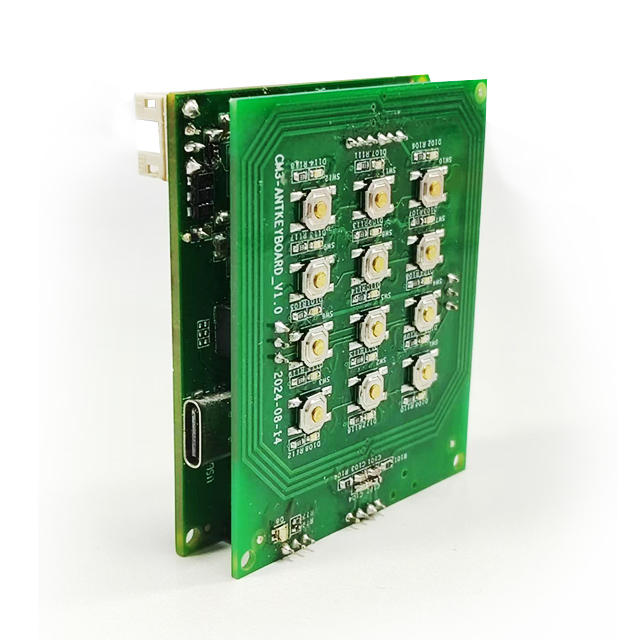

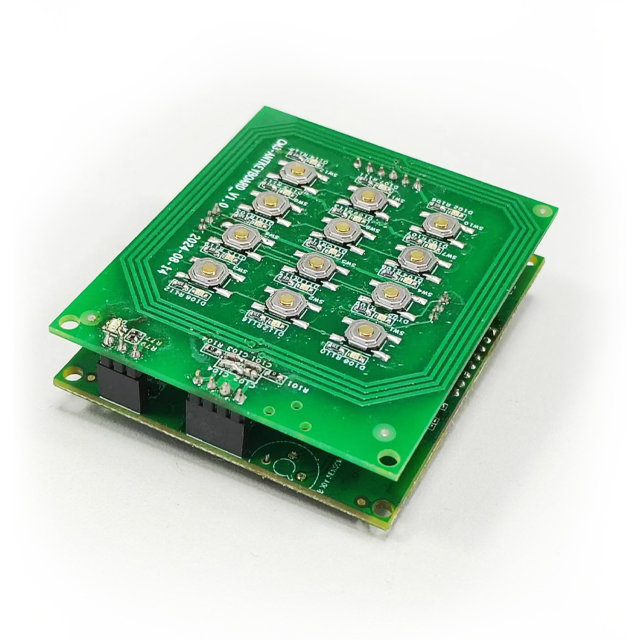

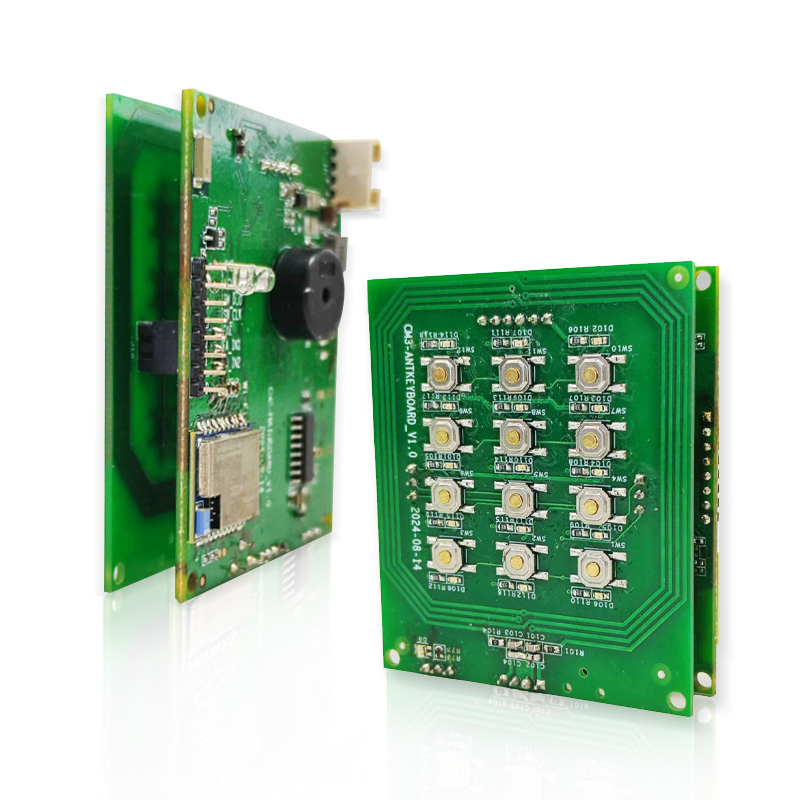

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low battery-operated power consumption design, which contains the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meets the high security application requirements.
| Memory | 4M BYTE |
| Power Supply | - USB - 3V / 4 * battery |
| RFID ISO Standard & Cards | 13.56MHz ISO14443A, ISO15693 and ISO18092 standard - Mifare Classic CSN & Sector - DESfire EV1/EV2/EV3(2k/4k/8k) CSN & Sector - NFC tag / HID iCLASS CSN |
| Secure Interface | - Optional SAM slot ISO7816 - Support SAM AV2 for 13.56MHz encryption - Secure IC for MCU protection EAL5+ Level |
| Mobile Communication | - NFC mobile phone - BLE 5.3 |
| Communication Interfaces | - WiFi - BLE 5.3 (Master & Slave mode, Beacon, Thread, Zigbee, Mesh) - USB |
| Operating Temperature | -20ºC ~ 60ºC |
