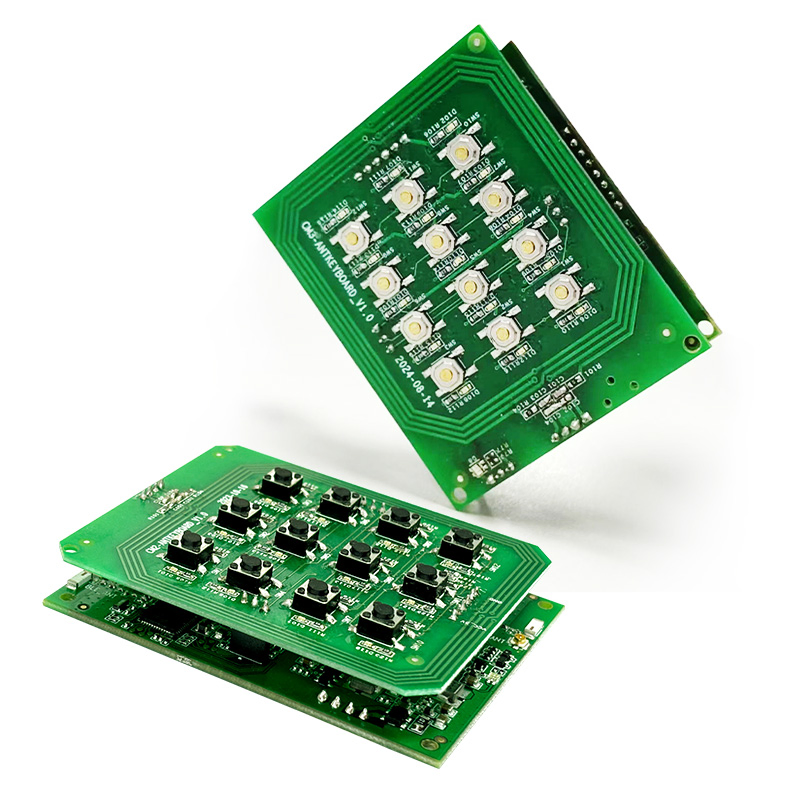

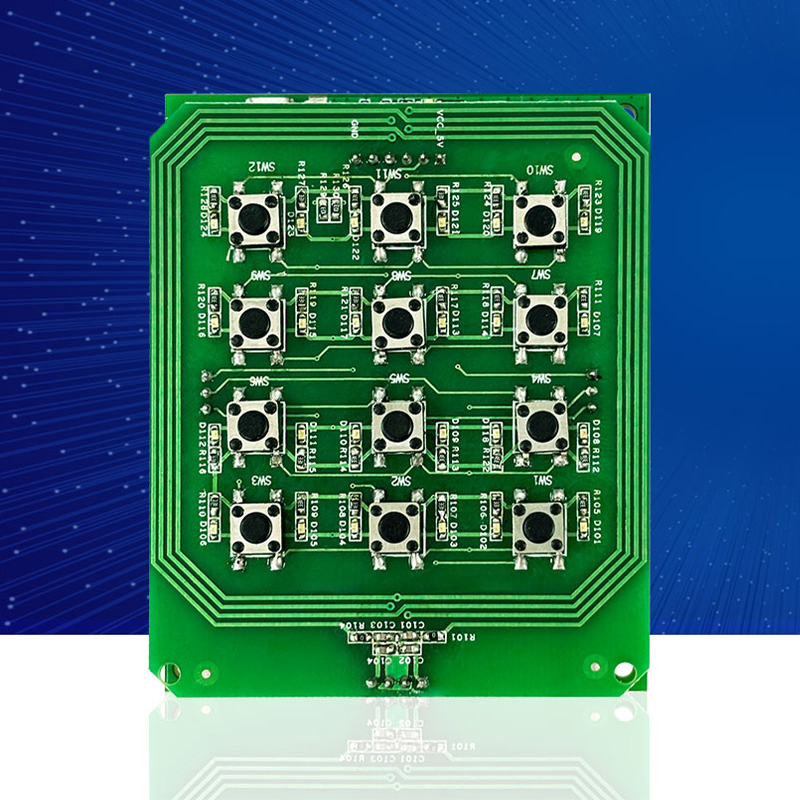

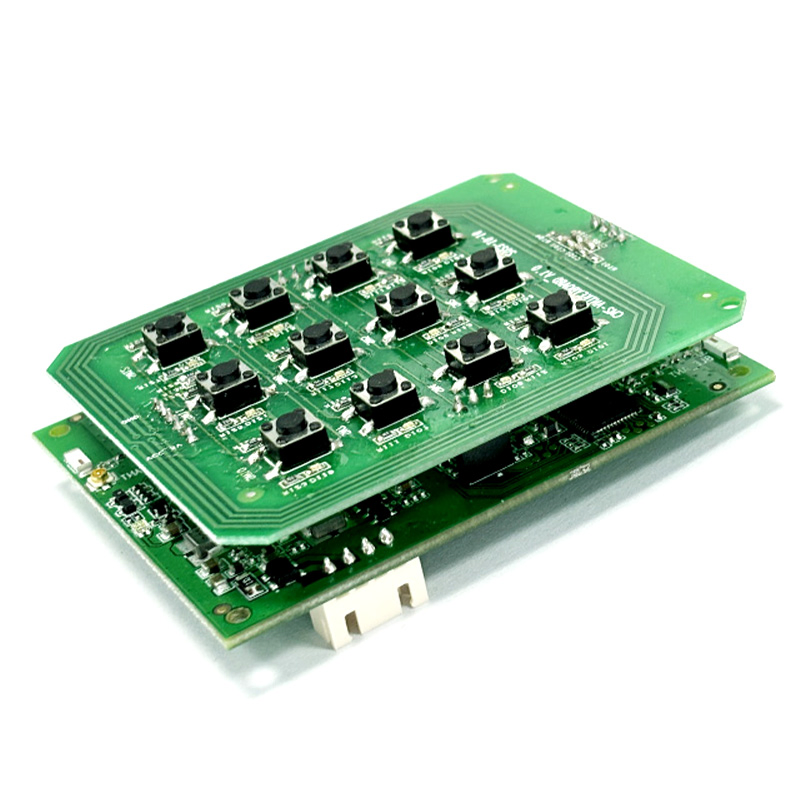

Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal
Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal
Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal
Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal
Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal
1 / 5
Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal
Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal
Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal
Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal
Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal

Cm3 Ultra-Low Power Consumption Key Card Entry Systems for Buildings RFID Based Door Access Control Terminal

Customization: Available
After-sales Service: Technical Support & Customization Service
Warranty: 1
Send Inquiry

Product Description

Basic Information
Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Anti-theft Standard
A
Backset
70mm
Usage
Household Door Locks, Bedroom, Channel Lock
RFID
MIFARE Plus, MIFARE, DESFire EV1/EV2, ISO14443b
Communication
WiFi, BLE 5.3, USB
Power
3V, 4 * Battery
Production Capacity
1000PCS/Month
Product Overview
Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low battery-operated power consumption design, which contains the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meets the high security application.

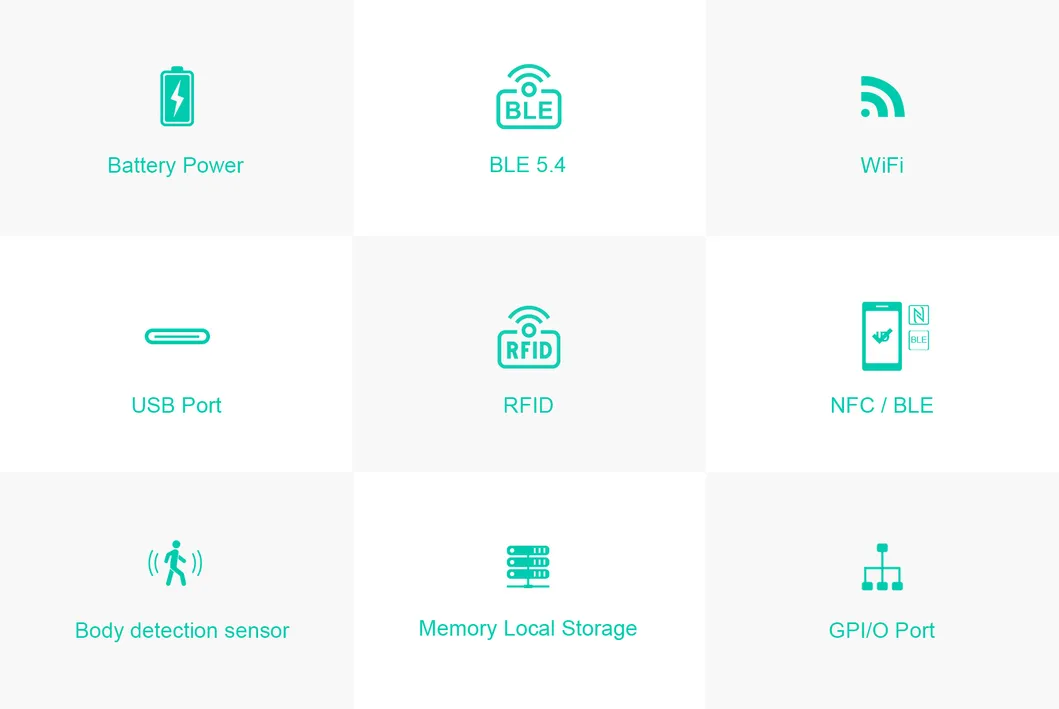

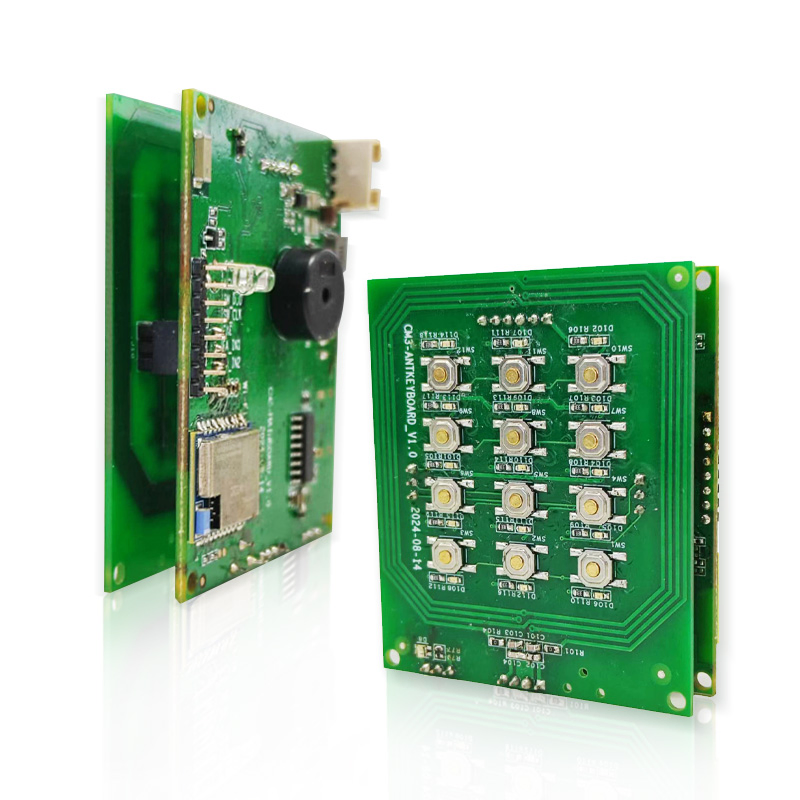

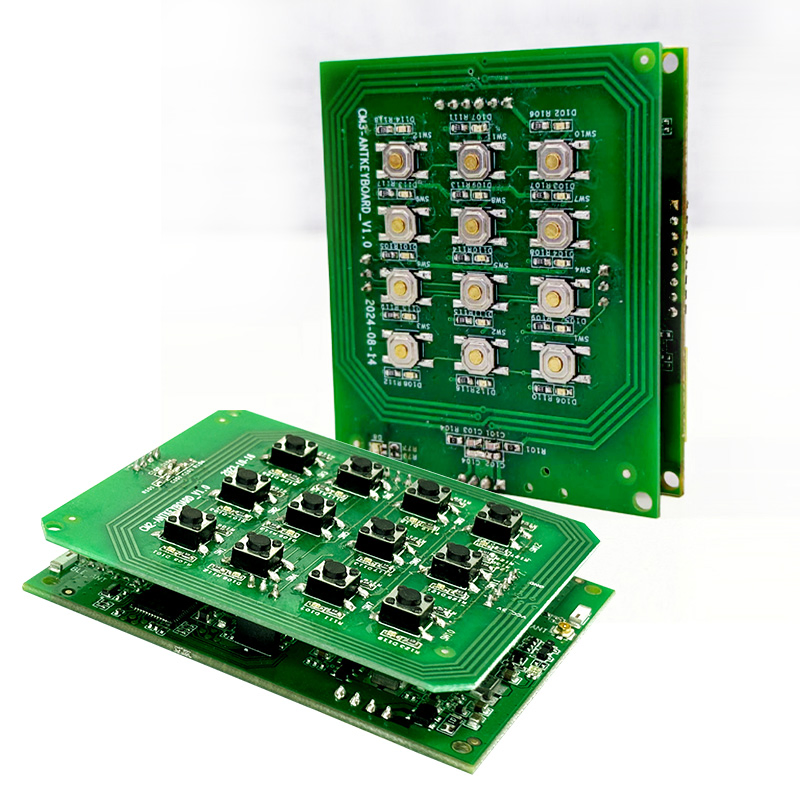

Smart CM3 Overview
Product Features

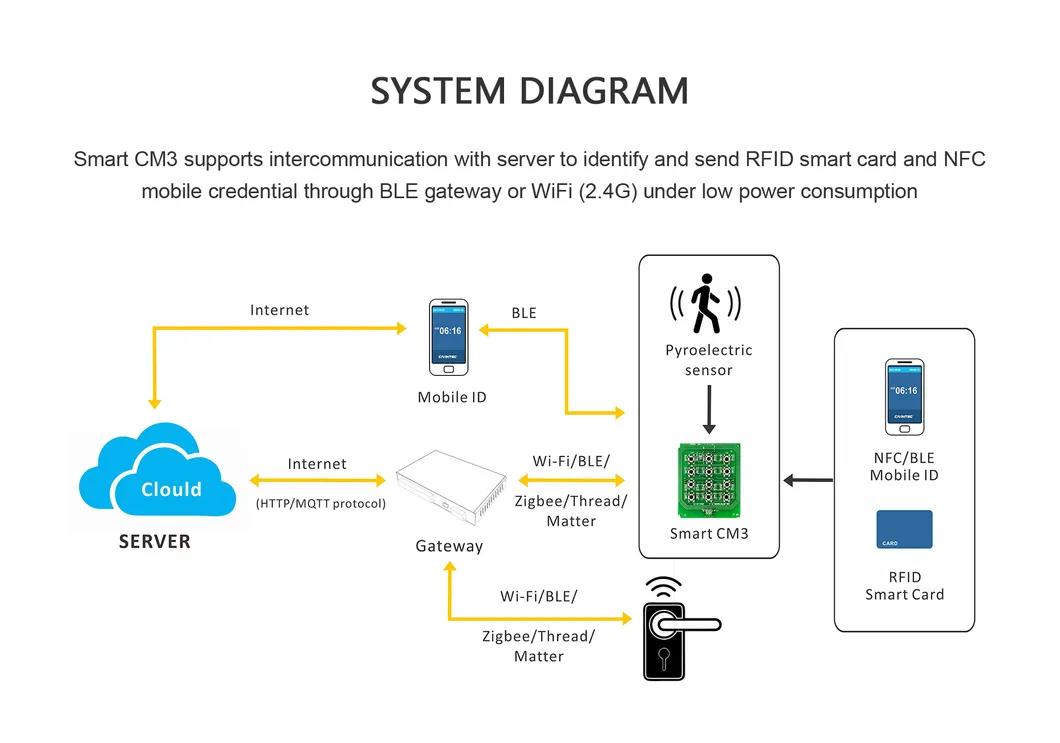

Feature 1 Feature 2 Feature 3
Advantages
  • Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
  • Support Arm® TrustZone® for high security
  • Rich I/O port for electric lock control
  • With memory for local data storage
  • Economic solution for battery powered ultra-low power consumption reader
  • Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
  • Embedded software development with Body detection function

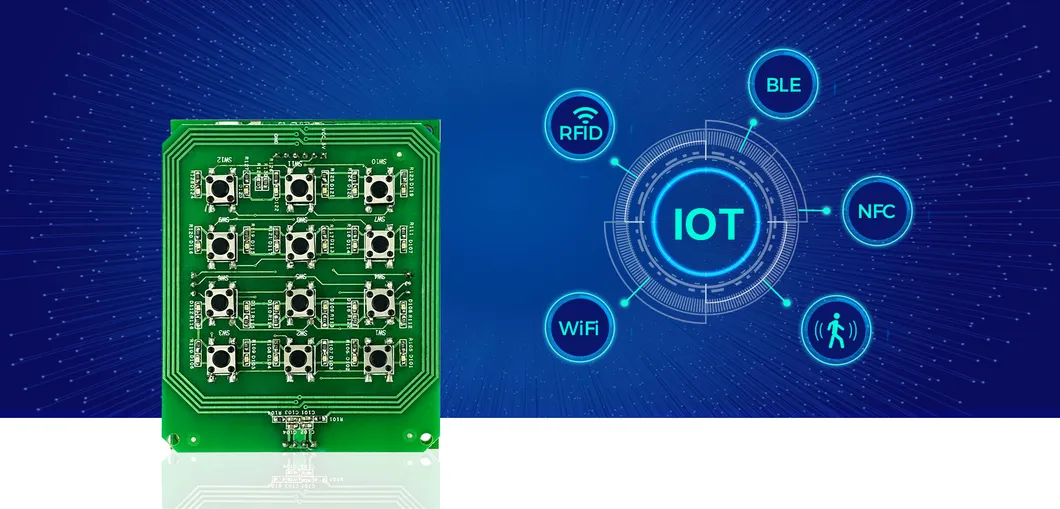

Advantages Diagram
Specifications
Memory 4M BYTE
Power Supply - USB
- 3V / 4 * battery
RFID Standards 13.56MHz ISO14443A, ISO15693 and ISO18092 standard
- Mifare Classic CSN & Sector
- DESfire EV1/EV2/EV3(2k/4k/8k) CSN & Sector
- Ultralight/Ultralight C CSN & Sector
- Mifare plus S,X CSN & Sector
- NFC tag
- HID iCLASS CSN
Secure Interface - Optional SAM slot ISO7816 T=0, T=1
- Support SAM AV2 for 13.56MHz read/write EAL5+ encryption
- Secure IC for MCU communication protection EAL5+ Level
Mobile Communication - NFC mobile phone
- BLE 5.3
Mechanical Keypad 12 digit keypad
Interfaces - WiFi
- BLE 5.3 (Master & Slave mode, Beacon, Thread, Zigbee, Mesh)
- USB
Indicators Buzzer and Bio-color LED
Operating Temp -20ºC~60ºC
Industrial Application
Application Details
Frequently Asked Questions
Q1: What makes the Smart CM3 "Ultra-Low Power"? The CM3 platform is designed specifically for battery-operated applications, utilizing the latest BLE 5.4 technology to minimize energy consumption while maintaining high performance.
Q2: Which RFID card types are compatible with this system? It supports a wide range of 13.56MHz technologies, including Mifare Classic, DESfire EV1/EV2/EV3, Ultralight C, Mifare Plus, and NFC tags.
Q3: Does the device support mobile phone access? Yes, it is fully compatible with NFC-enabled mobile phones and BLE 5.3 for secure mobile credential identification.
Q4: How secure is the communication and data storage? The system supports Arm® TrustZone® and includes a Secure IC for MCU communication protection at the EAL5+ level, ensuring high-grade security for access control.
Q5: What are the available communication interfaces? The CM3 provides multiple interfacing options including WiFi, BLE 5.3 (supporting Mesh, Zigbee, and Thread), and USB connections.
Q6: Can the CM3 operate in extreme weather conditions? Yes, the device is designed to operate reliably within a temperature range of -20ºC to 60ºC.
