MX Lock
1 / 5
Professional Manufacturing: We are specialized in manufacturing door closers and have developed into a modern factory with abilities of design, create, manufacture and sales.

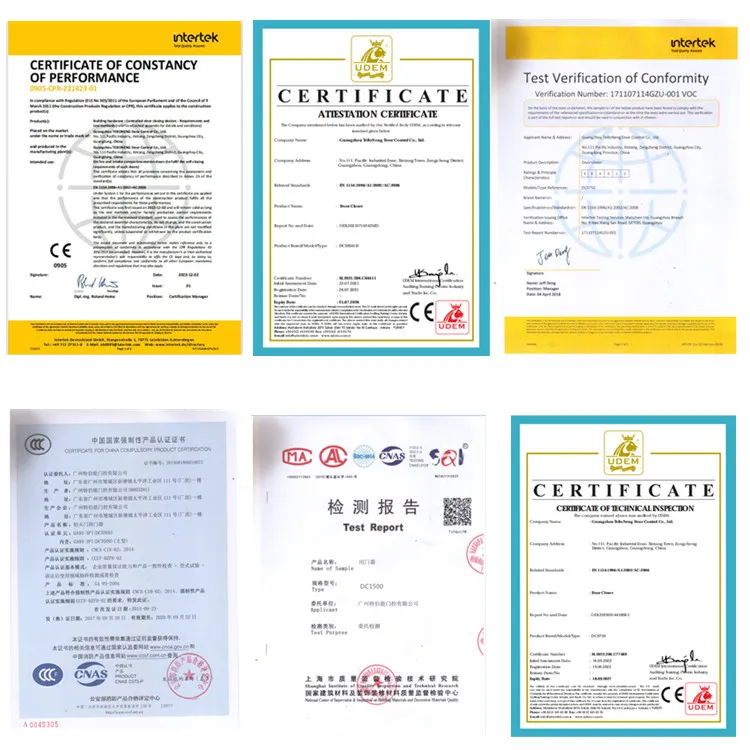

Quality Assurance: As our main product, the quality of our hydraulic door closer has passed strict standard tests like EN1154, UL228, and QBT2698, demonstrating excellent performance over more than 500,000 tested cycles.
Technical Expertise: We utilize well-known door closer experts as advisers to lead our R&D team and develop new energy for products.
Global Commitment: Our goal is to offer high-quality products with the best service to meet full customer satisfaction in the door control business.
| Material | Aluminum Alloy | Operator | Hydraulic |
|---|---|---|---|
| Closing Angle | 180° to 15° | Latching Angle | 15° to 0° |
| Temperature Range | -40° to 40° | Service Test | Over 500,000 cycles |
| Max Opening | 180° | Power Size | EN2, EN3, EN4 |
| Power Size | Door Width (mm) | Door Weight (kg) |
|---|---|---|
| EN2 | 750~850 | 20~40 |
| EN3 | 850~950 | 40~60 |
| EN4 | 950~1100 | 60~80 |
| Standard Arm | Top Jamb | Parallel Arm | Sliding Arm | Concealed |
|---|---|---|---|---|
| √ | √ | - | - | - |
